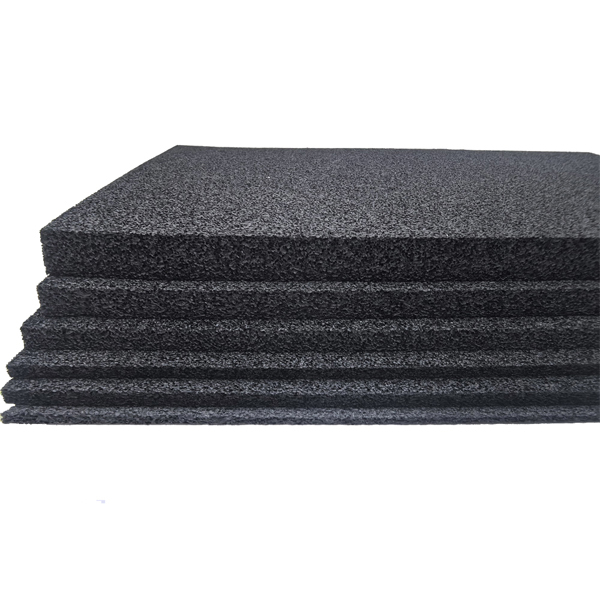

Open Cell Thermal Insulated NBR/PVC Rubber Foam

NBR/PVC Thermal Insulation Rubber Foam for HVAC and Refrigeration

Topsun NBR/PVC thermal insulation rubber foam is a flexible rubber-plastic foam material designed for HVAC, refrigeration, chilled-water systems, air ducts, hot-water pipes and industrial equipment insulation. The referenced thermal-insulation grade has a soft closed-cell structure that supports low thermal conductivity, moisture resistance and flexible installation.

The product range is available in densities from 50–150 kg/m³, widths from 1000–1800 mm and thicknesses mainly from 3–50 mm. Typical roll length is approximately 10 m. Black is the main color, while red, purple, blue and other colors can be evaluated according to customer requirements.

Topsun can also provide one-side or double-side adhesive options and customized cutting, slicing and converting according to the finished insulation or industrial application.

NBR/PVC Thermal Insulation Foam Features

• Thermal insulation: the existing product information lists thermal conductivity of approximately 0.034 W/m·K at an average temperature of 0°C.

• Closed-cell insulation structure: the referenced thermal-insulation grade is described as soft closed-cell NBR/PVC foam.

• Moisture resistance: suitable for insulation systems where resistance to water vapor penetration and condensation control are important.

• Flexible material: suitable for installation around ducts, pipes, equipment and selected curved surfaces.

• Low-temperature flexibility: the supplied test data records the material as soft with no cracking after the stated -40°C test condition.

• Compression performance: suitable for flexible insulation, cushioning and selected sealing applications.

• Oil and fuel resistance: the existing product information lists resistance to acid, fuel and oil.

• Custom sizes: multiple densities, thicknesses, widths and converted shapes can be evaluated.

• Optional adhesive backing: one-side or double-side adhesive can be provided for suitable applications.

NBR/PVC Rubber Foam Product Information

NBR/PVC Rubber Foam Technical Specification

The following table retains the existing technical data supplied for the referenced NBR/PVC foam grade. Final material selection should be confirmed according to density, thickness, thermal requirements, operating conditions and finished application.

What Is NBR/PVC Thermal Insulation Foam?

NBR/PVC rubber-plastic sponge is a flexible insulation material made from nitrile rubber and PVC. The referenced thermal-insulation product is described as a soft black closed-cell foam designed for cold and heat insulation applications.

Existing product information lists thermal conductivity of approximately 0.034 W/m·K at an average temperature of 0°C and a moisture resistance factor of ≥10,000 for the described insulation material.

The material can be supplied in sheet and pipe forms for suitable HVAC and refrigeration applications. It is used for insulation of refrigeration equipment, chilled-water pipes, condenser-water pipes, air ducts and hot-water pipes.

The existing product information identifies an operating range from approximately -40°C to 110°C. Final temperature suitability should be confirmed for the selected foam grade and installation structure.

NBR/PVC Foam for HVAC Insulation

Flexible NBR/PVC rubber foam can be used for thermal insulation in central air-conditioning systems, ductwork and HVAC equipment where reduced heat transfer and moisture control are required.

The flexible structure allows the material to be fitted around suitable duct and equipment surfaces. Sheets can also be cut into customized dimensions according to installation requirements.

Adhesive backing can be added where easier positioning on suitable metal duct surfaces is required.

NBR/PVC Foam for Chilled-Water Pipe Insulation

Low-temperature pipelines can be exposed to condensation when the surface temperature falls below the dew point of the surrounding air. Insulation materials for these systems therefore need both thermal performance and resistance to moisture penetration.

The referenced NBR/PVC thermal insulation grade is intended for applications including chilled-water pipes and condenser-water pipes. Its flexible foam construction allows insulation around suitable piping and equipment geometries.

Required insulation thickness depends on pipe temperature, ambient temperature, humidity, pipe diameter and system design and should be determined for the specific project.

NBR/PVC Foam for Refrigeration Equipment

NBR/PVC rubber foam can be used as flexible thermal insulation around suitable refrigeration units, equipment panels and associated piping systems.

The combination of low thermal conductivity, flexibility and moisture resistance makes the referenced grade suitable for cold-insulation applications where condensation control is important.

Typical NBR/PVC Thermal Insulation Applications

Thermal Conductivity and Energy Loss Control

Thermal conductivity indicates how readily heat passes through an insulation material. A lower value means the material transfers heat more slowly under the stated test conditions.

The existing product description lists thermal conductivity of approximately 0.034 W/m·K at an average temperature of 0°C for the referenced NBR/PVC insulation material.

Actual insulation-system performance also depends on material thickness, installation quality, operating temperature and environmental conditions.

Moisture Resistance and Condensation Control

Moisture control is particularly important on chilled-water and refrigeration systems. Water vapor entering an insulation system can reduce thermal performance and contribute to condensation-related problems.

The existing product information describes the referenced NBR/PVC insulation material as having a moisture resistance factor of ≥10,000. This characteristic supports its use in suitable low-temperature insulation systems.

Joints, seams, penetrations and exposed edges should still be handled according to the design requirements of the complete insulation system.

Flexible NBR/PVC Foam for Duct and Pipe Installation

Flexible rubber foam is easier to form around suitable pipes, elbows, equipment surfaces and ductwork than rigid insulation materials in many applications.

Topsun can supply NBR/PVC foam in different widths and thicknesses and can provide cutting or adhesive backing according to suitable installation requirements.

For prefabricated duct applications, wider foam formats can also help reduce the number of separate pieces required during installation.

Vibration Damping for HVAC Equipment

The elasticity of NBR/PVC rubber foam allows it to act as a flexible interface between suitable equipment components. It can help attenuate vibration at joints, supports, suspensions and panel interfaces.

Where vibration damping is a primary requirement, density, thickness, compression and equipment load should be evaluated according to the actual assembly.

How to Select NBR/PVC Thermal Insulation Foam

Material selection should consider the complete insulation system rather than density or thickness alone.

• Application: identify whether the material is used for chilled water, refrigeration, ductwork, hot-water piping or equipment insulation.

• Cell structure: confirm the required foam structure for the intended thermal and moisture-control function.

• Density: specify the required grade if already established.

• Thickness: select according to thermal performance and condensation-control requirements.

• Width and length: specify sheet or roll dimensions required for installation.

• Operating temperature: provide minimum and maximum system temperatures.

• Ambient conditions: provide temperature and humidity information for condensation-sensitive systems.

• Adhesive backing: specify whether plain foam, one-side adhesive or double-side adhesive is required.

• Fire-performance requirement: identify any project-specific requirement before material selection.

• Quantity: provide sample, trial and estimated production requirements.

Custom NBR/PVC Foam Processing

Topsun provides foam material supply together with custom processing according to customer dimensions, drawings and application requirements.

1. Cutting: foam sheets, rolls and components can be cut according to required dimensions.

2. Slicing: foam material can be sliced to required thickness for suitable products.

3. Lamination: hot-melt film lamination, flame lamination and pressure-sensitive adhesive lamination are available.

4. Laser Cutting: suitable custom foam shapes can be processed according to digital drawings.

5. Die Cutting: repeatable pads, gaskets, strips and other customized components can be produced according to customer designs.

6. Compression Molding: three-dimensional molded foam and foam composite components can be manufactured for suitable applications.

7. Engraving: suitable for tool-box inserts, protective packaging inserts and custom foam components.

8. Silk-Screen Printing: logos and patterns can be printed on suitable foam surfaces.

9. Adhesive Backing: adhesive and release liner can be applied to suitable foam materials for self-adhesive sheets, rolls, strips and parts.

Foam Materials Available from Topsun

Topsun supplies NBR/PVC foam, EVA foam, PE foam, XPE foam, IXPE foam, CR foam, EPDM foam, neoprene foam, SBR foam, NBR foam and micro-cell soft PVC foam in sheet, roll and customized converted forms.

About Topsun Foam

Topsun supplies foam materials and customized foam products for HVAC, refrigeration, automotive, construction and industrial buyers. Customers can provide density, thickness, dimensions, operating conditions and application requirements for product evaluation.

Our facility is located in Changzhou City, Jiangsu Province, China, with convenient access to Shanghai Port for international shipments.

NBR/PVC Thermal Insulation Rubber Foam FAQ

What is NBR/PVC thermal insulation foam?

NBR/PVC thermal insulation foam is a flexible rubber-plastic insulation material made from nitrile rubber and PVC. The referenced grade is described as a soft closed-cell foam used for HVAC, refrigeration, chilled-water pipes, ducts and other thermal insulation applications.

Is this NBR/PVC insulation open cell or closed cell?

Topsun supplies NBR/PVC products in different foam constructions. The thermal-insulation material described in the technical information on this page is identified as a soft closed-cell NBR/PVC foam. Confirm the required structure when requesting a quotation.

What is the density of this NBR/PVC foam?

The broader product range lists densities from 50 to 150 kg/m³. The referenced technical grade has a specified density range of 50–90 kg/m³, with a recorded test result of 63.5 kg/m³.

What thicknesses are available?

Existing product information lists thicknesses mainly from 3 mm to 50 mm. Required thickness should be selected according to the thermal insulation and installation requirements of the project.

What is the thermal conductivity of the NBR/PVC insulation?

The existing product description lists thermal conductivity of approximately 0.034 W/m·K at an average temperature of 0°C for the referenced thermal insulation material.

Is NBR/PVC foam suitable for chilled-water pipe insulation?

Yes. The existing product information identifies chilled-water pipes as one of the intended applications. Insulation thickness should be selected according to pipe temperature, ambient temperature, humidity and pipe diameter.

Is NBR/PVC foam suitable for air duct insulation?

Yes. Flexible NBR/PVC foam can be used for suitable air-duct insulation applications. Different widths and adhesive-backed constructions can be evaluated according to installation requirements.

Can NBR/PVC insulation help prevent condensation?

The referenced NBR/PVC material combines thermal insulation with moisture resistance and is intended for low-temperature pipeline applications where condensation control is important. Final performance depends on thickness, environmental conditions and installation quality.

What temperature conditions have been tested?

The supplied technical table records the material as passing a -40°C ±1°C for 5 hours test without cracking and records a 105°C ±3°C for 7 days aging test result of 7.14%.

Can NBR/PVC foam be supplied with adhesive backing?

Yes. Existing product information lists one-side and double-side adhesive options. The required bonding substrate and installation conditions should be provided when selecting the adhesive construction.

Can Topsun customize NBR/PVC foam dimensions?

Topsun provides cutting, slicing, lamination, die cutting and other foam converting services. Required width, length, thickness and finished component dimensions can be provided for evaluation.

What information should I provide for a quotation?

Please provide the application, required density if known, thickness, width and length, operating temperature, pipe or duct dimensions, adhesive requirement, environmental conditions and estimated quantity.

How can I request an NBR/PVC insulation foam sample?

Send your requirements to july@topsunfoam.com with the required density, thickness, dimensions, application, operating conditions and estimated quantity for evaluation.
