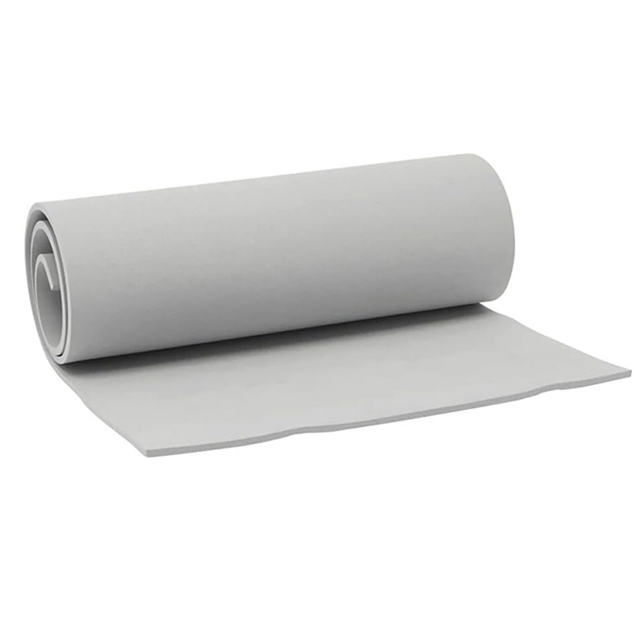

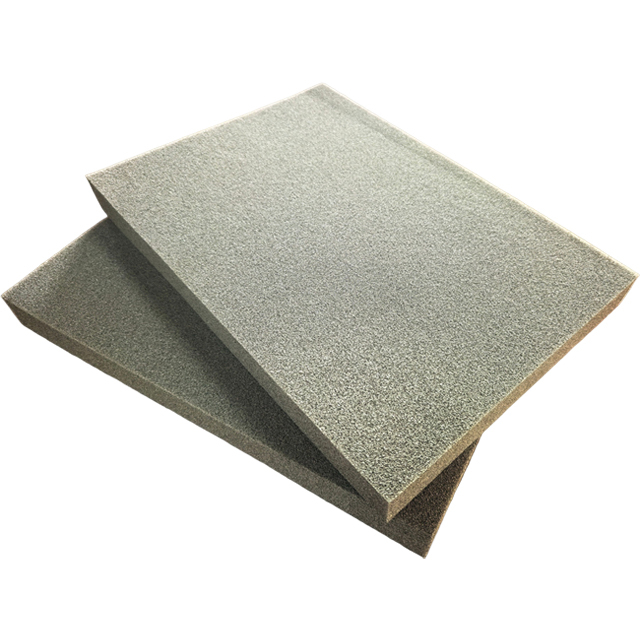

Open Cell PE Polyethylene Foam

  • pe foam

  • Topsun

  • >3 MPa

  • >120%

  • >30+/-10kpa

  • <0.038W/M.K

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Open Cell PE foam for Automotive Application Features:

·Fire Resistant - made with fire retardant additives
·Superior compression and recovery properties
·Durability - cross linked feature makes it water and moisture resistant
·Chemical resistance - resistant to most chemicals and acids
·Can be supplied with pressure sensitive adhesive backing for ease of installation
·Excellent weatherability

Specification of PE Foam :

                                                                            PE Foam Technical Specification

TESTING ITEM

TESTING STADNDARD

TESTING RESULTS

BLOCK SIZE



PE25

PE30

PE45

PE60

PE90

PE120

PE140

1000*2000mm

1200*2400mm

1500*2500mm

Density kg/m3

GB/T 6343

kg/m3

25

32

49

62

96

128

144

Tensile Strength (MPa)

GB/T 6344

MPa

160

170

305

305

350

380

400

Tensibility

GB/T 6344

%

165

174

190

190

160

160

160

Hardness


Shore C

18

23

30

42

55

60

72

Tearing strength

GB/T 6344

N/cm

5

6

10

10

10

12

12

25% Compression Force Deflection

JIS K6767

KPa

35

45

70

70

50

95

95

Compression Set

GB/T8813

%

2

2

2

2

2

3

3

Water Absortion Rate


g/cm3

0.002

0.001

0.001

0.001

0.001

0.001

0.001

Thermal conductivity


W/m.k

0.037

0.038

0.038

0.038

0.038

0.037

0.037


PE Foam FAQ:

1.What is PE foam?

pe foam


PE foam, or polyethylene foam, is a closed-cell foam material known for its smooth surface, excellent sealing, and water resistance. It is lightweight and offers superior thermal insulation.PE foam also boasts exceptional dimensional stability and recovery characteristics, providing effective cushioning and impact protection.This versatile material is commonly used in a wide range of applications, including packaging for delicate items, as well as in computer, automotive, construction, and recreational products. Due to its shock-absorbing, vibration-dampening, insulating, and buoyant properties, PE foam is ideal for use in products that require these specific functionalities.

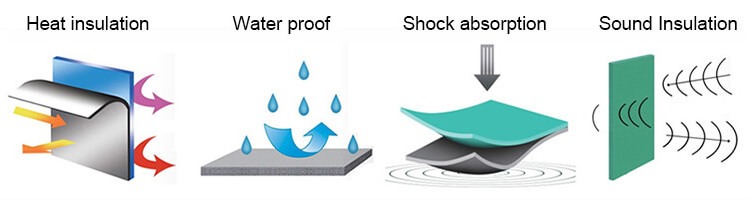

2.Benefits of PE foam

· Closed-Cell

· Very lightweight

· Non-abrasive

· Easy to fabricate

· Non-Dusting

· Superb strength and tear resistance

· Excellent shock absorption & vibration dampening properties

· Flexibility

· Impervious to mildew, mold, rot, and bacteria

· Resistant to water, chemicals, solvents & grease

· CFC free

· Odorless

· Excellent buoyancy

· Very cost-effective

· Excellent thermal insulation properties

3.What is Application of PE foam

PE foam is a very versatile product.  It is suitable for a wide range of different uses and applications, such as Marine flooring materials, orthopedic EVA blocks.  It is an effective substitute for many materials.  Such as felt, neoprene, natural rubber, polyurethane foam, PVC foam, wood composites, mineral wool and glass fiber.

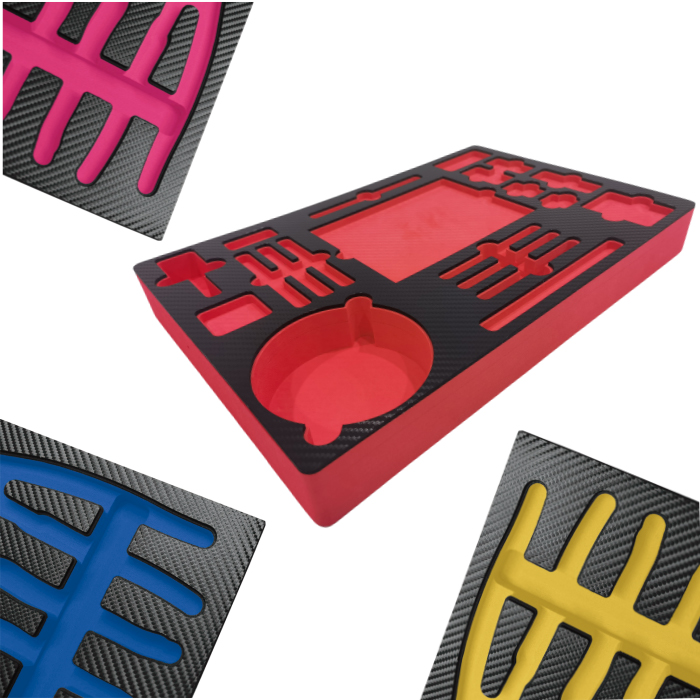

pe173

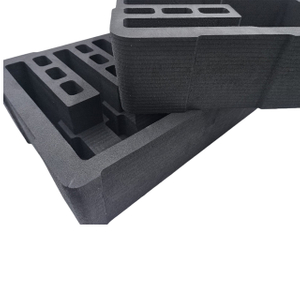

PE FOAM TOOL BOX INSERT

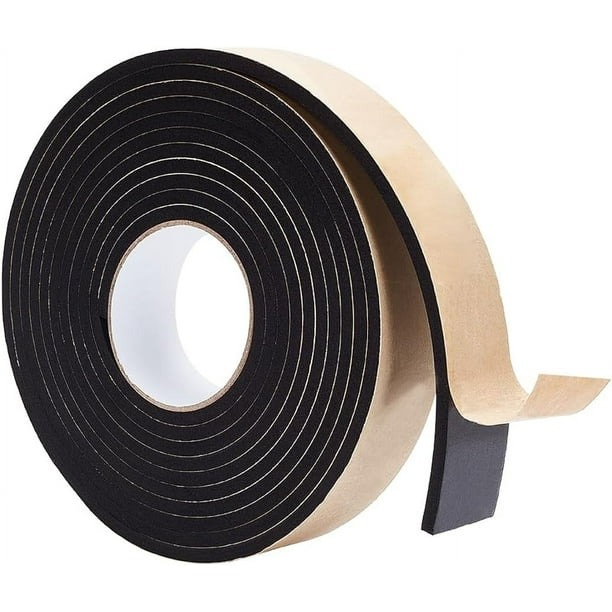

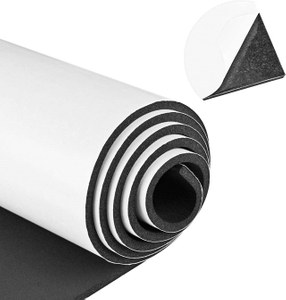

eva foamPE FOAM TAPE

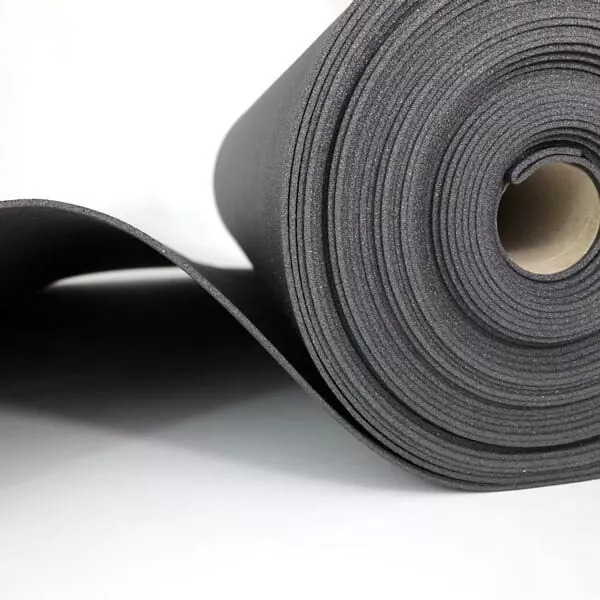

Foam-Sponge-Closed-Cell-Polyethy

PE FOAM ROLLS

3.Specific Uses for PE Foam:

Packaging, surface protection, cold chain, automotive, sports & leisure, void fill, medical, construction, military, blocking & bracing, floor underlayment, recreational, agriculture, archery target.

4.Who are you?

Topsun, the Professional supplier for the Foams, we can provide a variety of foam products, such as EVA foam, PE foam, neoprene foam, EPDM foam and NBR foam.At the same time, we have advanced processing capabilities to convert foam into the products you need.

5.What kinds of foam materials we can supply ?

We can supply :EVA foam, PE foam, XPE foam, IXPE foam, CR foam, EPDM foam, Neoprene foam, SBR foam, NBR foam, Micro-cell soft PVC foam. All of them we can supply in sheet and roll.

6.What's the processing capacity we have ?

1. Cutting - cutting the size as per client’s request

2. Slicing - Slicing the thickness as per client’s request

3. Lamination - hot melt film lamination, flame lamination, and pressure-sensitive adhesive lamination

4. Laser Vibrator - New type cutting machine, can cut the foam drawing without open molds

5. Die cutting - Open molds as per your design then at first, use die cutting machine to produce, it’s quicker than laser vibrator.

6. Compression Molding - Compression molding is a process we utilizes for the manufacturing of three-dimensional molded foam and foam composite parts. It is an ideal process for making parts that have intricate features, require very defined part geometry, have varying wall thicknesses or need to be held to critical dimensional tolerances.

7. Engraving machine - Usually to make tool box insert and packing insert as per client’s requests.

8. Silk-screen printing - Print logos and patterns on the surface of foam products

9. Adhesive backing - Gluing on the surface of the foam with liners. Usually produce foam tapes and other products need to stick on.

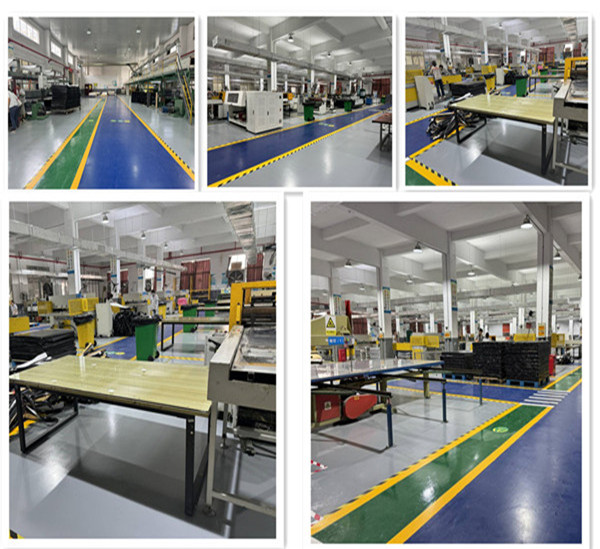

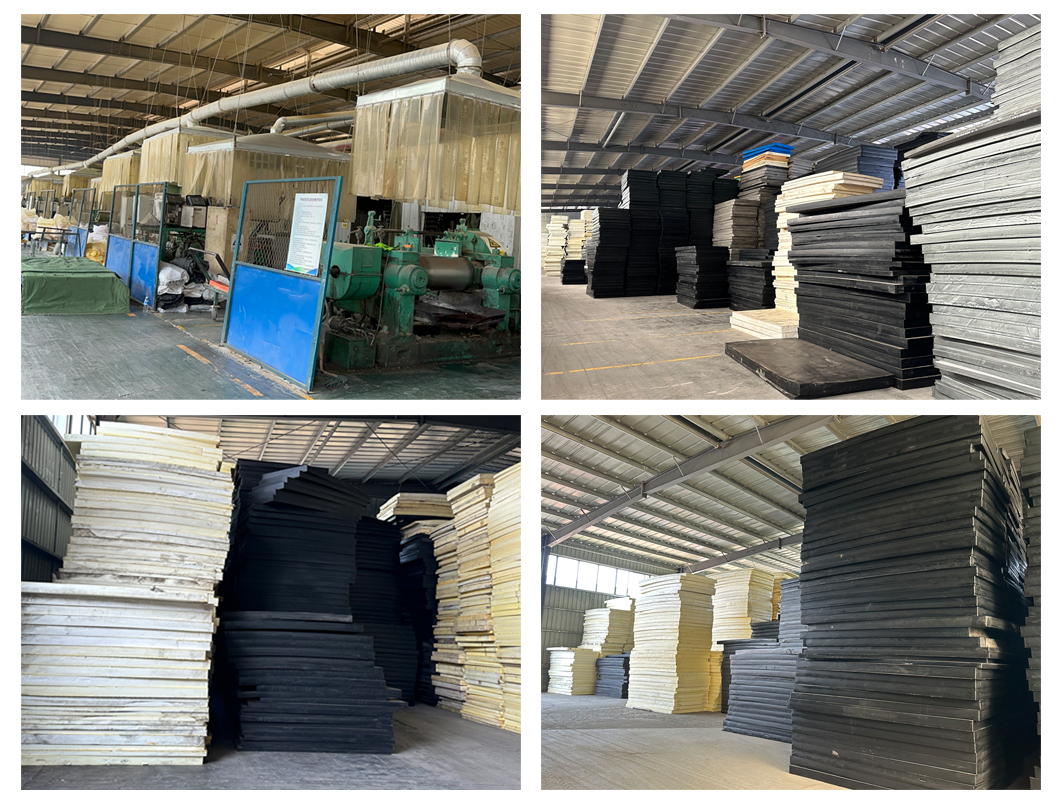

7.Where is our facility located ?

Our factory is located in Changzhou city, Jiangsu Province. One hour driving to Shanghai Port.

initpintu_

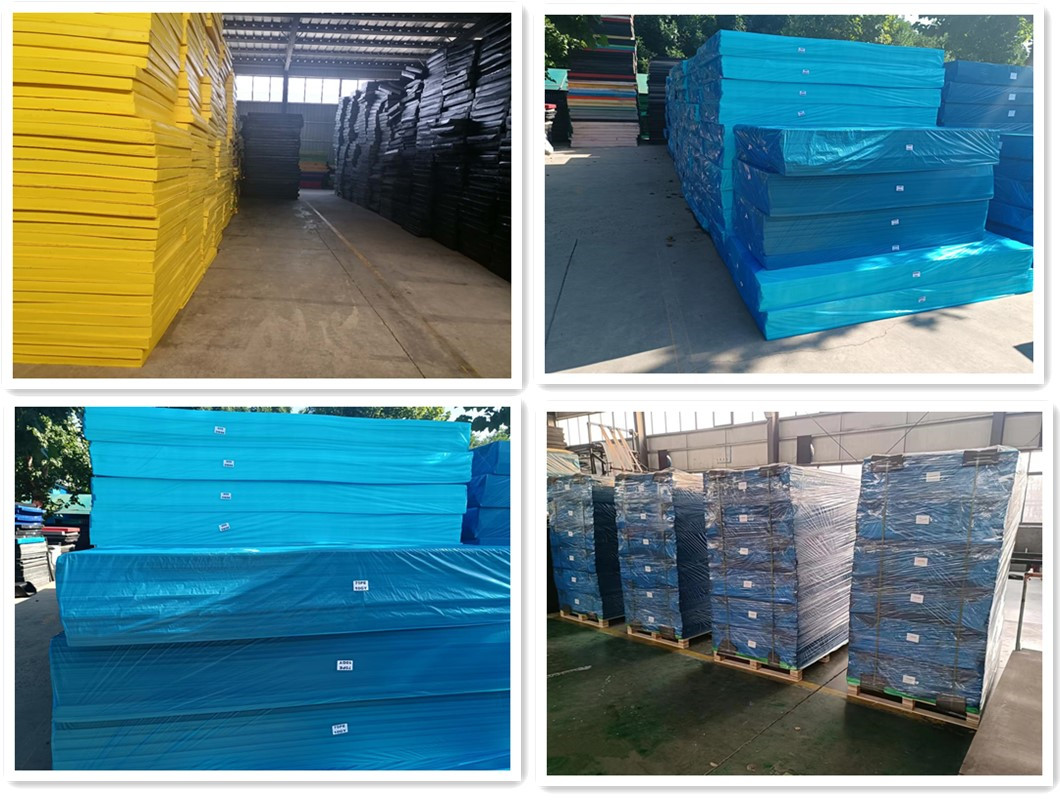

EVA包装图

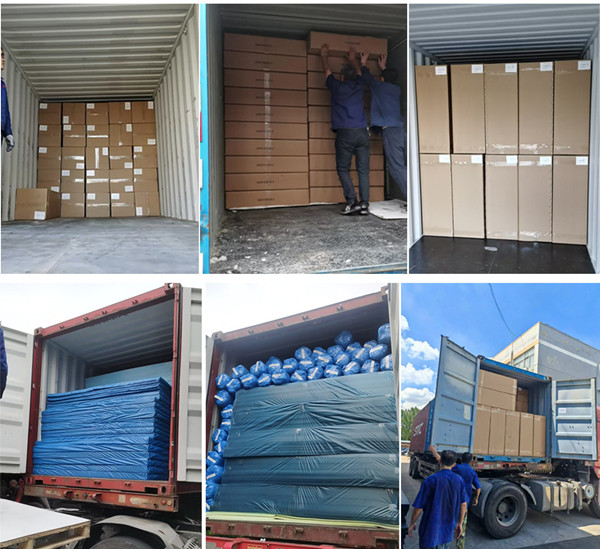

eva02_

8.How to get samples ?

Send enquiry to july@topsunfoam.com, with your details of the foams need, we will check reply in 24 hours.We are committed to continuously providing excellent products and services to customers worldwide.
