Open Cell EPDM Foam with Adhesive

Adhesive-Backed Open Cell EPDM Foam for Gaskets and Assembly

Topsun adhesive-backed open cell EPDM foam combines soft, low-compression EPDM sponge rubber with pressure-sensitive adhesive backing for easier positioning and assembly. It can be converted into foam tapes, strips, pads, gaskets and custom die-cut components for automotive, electronics, HVAC, appliances, industrial equipment and other manufacturing applications.

The open-cell EPDM structure provides softness, flexibility and low compression force, allowing the foam to conform to irregular surfaces and component gaps. EPDM rubber also provides useful resistance to ageing, ozone, UV exposure and weathering.

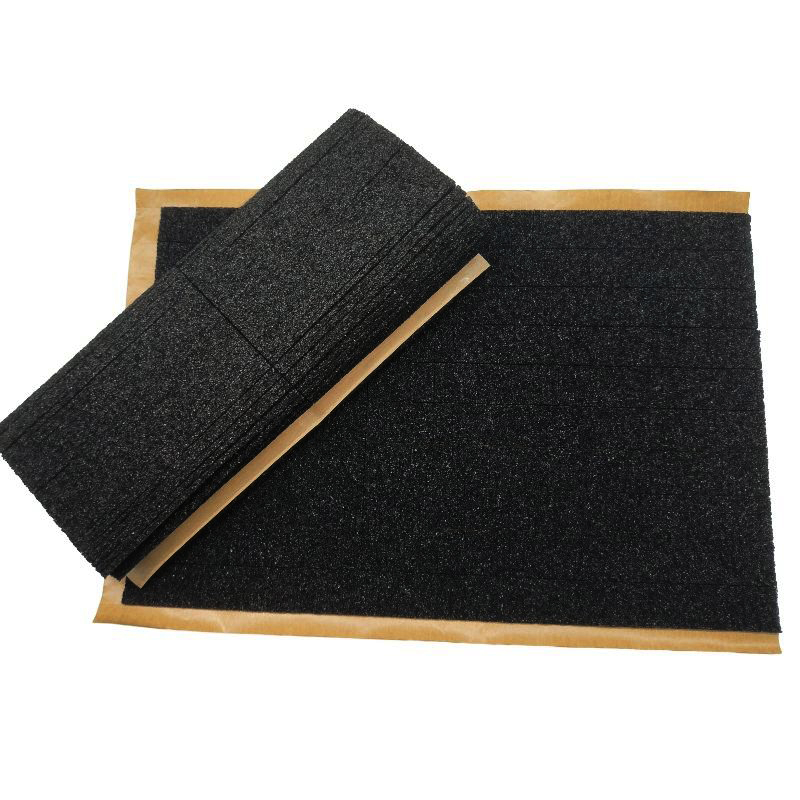

An adhesive layer and release liner can be laminated to the foam so that the finished component can be positioned directly on a compatible substrate during assembly. The adhesive requirement should be evaluated according to the actual bonding surface, operating environment, installation method and service conditions.

Topsun can supply adhesive-backed open cell EPDM foam as sheets, rolls, strips, tapes, pads and customized die-cut shapes according to customer drawings, dimensions, samples and application requirements.

                   Request Adhesive EPDM Foam Quote

Adhesive Open Cell EPDM Foam Product Information

Key Features of Adhesive-Backed Open Cell EPDM Foam

• Soft open-cell structure: provides low compression force and good conformability.

• Adhesive-backed installation: pressure-sensitive adhesive helps position the foam during assembly.

• Release liner: protects the adhesive surface before installation.

• Gap filling: soft foam can conform to suitable dimensional variation and irregular interfaces.

• Vibration damping: provides cushioning between contacting components in suitable assemblies.

• Sound absorption: interconnected pores make the material suitable for acoustic cushioning applications.

• Anti-rattle cushioning: helps separate adjacent surfaces and reduce mechanical contact noise.

• EPDM durability: provides useful resistance to ageing, ozone, UV exposure and weathering.

• Custom converting: can be cut into tapes, strips, pads, gaskets and custom die-cut components.

Why Use Adhesive Backing on Open Cell EPDM Foam?

Adhesive backing is useful when the foam must remain accurately positioned during manufacturing or final assembly. After removing the release liner, the foam component can be placed onto a compatible clean surface before the surrounding parts are installed.

This is particularly useful for foam strips, cushioning pads, anti-rattle components and gaskets that would otherwise move during handling or assembly.

Pressure-sensitive adhesive should be considered part of the complete assembly rather than automatically treated as a structural fastening method. Final bonding performance depends on the substrate, surface condition, contact area, temperature, moisture, loading and service environment.

Open Cell EPDM Foam Technical Specifications

The following test data covers three EPDM foam grades currently listed for this product. Material selection should consider actual density together with compression force, tensile strength, elongation, compression set and finished application requirements.

Foam test values above describe the EPDM foam material. Adhesive performance should be evaluated separately according to the selected adhesive system, substrate and service conditions.

Adhesive Open Cell EPDM Foam Product Video

How Adhesive-Backed EPDM Foam Is Installed

Adhesive-backed EPDM foam normally consists of the foam substrate, pressure-sensitive adhesive and a removable release liner.

Before installation, the bonding surface should be suitable for adhesive application and free from loose dust, oil, moisture and other contamination that could interfere with contact between the adhesive and substrate.

The release liner is removed, the foam is positioned without unnecessary stretching, and even pressure is applied across the adhesive area. Installation procedures should be adjusted according to the selected adhesive system and actual substrate.

Choosing Adhesive Backing for Different Surfaces

Adhesive performance cannot be determined from the EPDM foam specification alone. When requesting adhesive-backed material, provide the exact substrate whenever possible.

Applications of Adhesive-Backed Open Cell EPDM Foam

Self-adhesive open cell EPDM foam is particularly useful where a soft foam component must be positioned quickly and accurately before or during assembly.

Automotive Components

Adhesive EPDM foam can be evaluated for interior cushioning, anti-rattle pads, acoustic components, vibration-control pads and suitable low-compression gasket applications.

Electronics

Soft die-cut pads and gap fillers can provide cushioning and help position foam components around suitable electronic housings and internal assemblies.

HVAC Equipment

Open cell EPDM foam can be used for suitable vibration damping, acoustic cushioning and soft interface applications in HVAC equipment.

If a project requires strict air-tight or water-tight sealing, the cell structure and sealing requirement should be evaluated separately.

Appliances

Adhesive-backed pads and strips can be used for suitable internal cushioning, anti-rattle interfaces and vibration-control applications.

Industrial Equipment

Custom adhesive-backed foam parts can provide cushioning, gap filling and vibration isolation between suitable machine housings, panels and components.

Construction Interfaces

Adhesive foam strips can be evaluated for suitable compressible interfaces and gap-filling applications where a soft positioning material is required.

Protective Packaging

Adhesive-backed cushioning pads can be positioned inside suitable cases, cartons and protective packaging assemblies to reduce movement and protect surfaces.

What Is Open Cell EPDM Foam with Adhesive?

EPDM stands for ethylene propylene diene monomer. EPDM is a synthetic rubber material valued for flexibility and resistance to ageing, ozone, UV exposure and weathering.

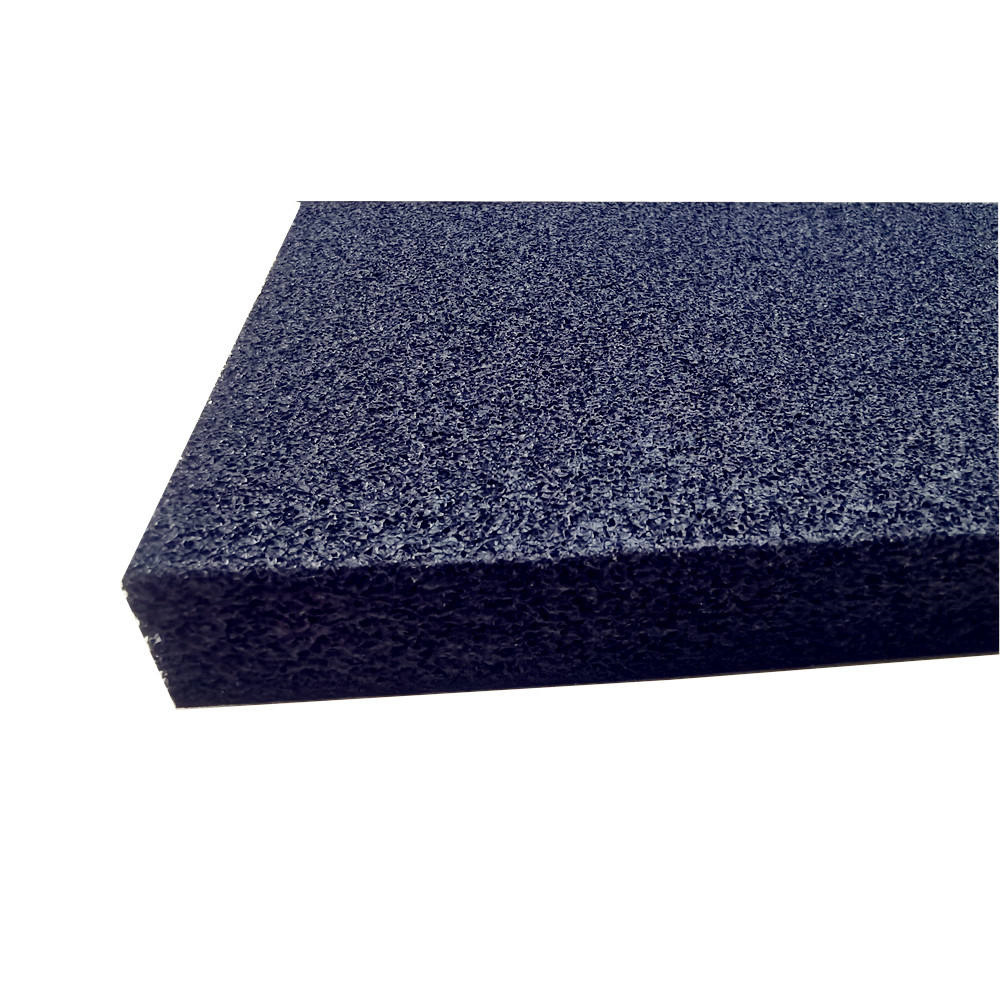

Open cell EPDM contains interconnected internal cells. This structure makes the foam relatively soft and easy to compress and allows it to conform to uneven surfaces.

For adhesive-backed products, a pressure-sensitive adhesive layer and release liner are laminated to the EPDM foam. This allows the material to be converted into self-adhesive sheets, rolls, strips, tapes, pads and custom gasket shapes.

Topsun provides foam material supply together with cutting, slicing, adhesive lamination, laser cutting and die-cutting services for customized industrial components.

Adhesive EPDM Foam Tape and Strip

Open cell EPDM foam can be slit and cut into adhesive-backed strips and tapes for production-line assembly, cushioning, gap filling and anti-rattle applications.

Tape width, foam thickness, density and finished length should be selected according to the component geometry and required compression.

Customers should also identify the actual bonding substrate and service environment when requesting adhesive-backed tape.

Custom Adhesive EPDM Foam Gaskets and Pads

Adhesive-backed EPDM foam can be cut or die cut into pads, spacers, cushioning components and gasket shapes according to customer drawings or samples.

Open cell EPDM is especially suitable where a gasket or pad must compress easily and conform to uneven interfaces with relatively low assembly force.

If the gasket must provide a strict water, air or dust barrier, the sealing requirement should be specified before material selection. A closed-cell EPDM material may be more appropriate for demanding environmental seals.

Open Cell vs. Closed Cell Adhesive EPDM Foam

Adhesive Open Cell EPDM Foam Customization Options

                   Send Drawing for Custom Quote

How to Select Adhesive Open Cell EPDM Foam

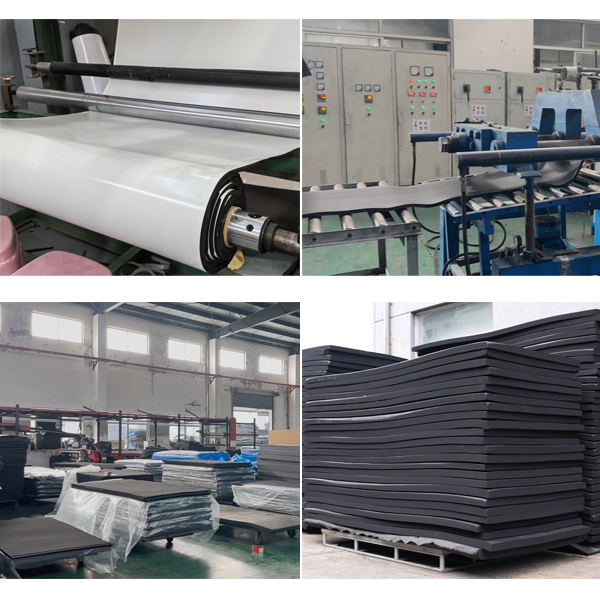

Topsun Foam Processing Capabilities

Cutting

Foam can be cut according to customer dimensions and finished component requirements.

Slicing

Foam material can be sliced to the required thickness for suitable components.

Adhesive Lamination

Pressure-sensitive adhesive and release liner can be laminated to suitable EPDM foam for self-adhesive tapes, strips, pads and gaskets.

Lamination

Hot-melt film lamination, flame lamination and pressure-sensitive adhesive lamination can be evaluated for compatible constructions.

Laser Cutting

Suitable custom foam shapes can be produced from digital drawings without dedicated cutting dies.

Die Cutting

Dedicated tooling can be used for repeatable production of gaskets, pads, spacers and custom foam components.

Compression Molding

Compression molding can be evaluated for suitable three-dimensional foam and foam-composite components requiring defined geometry.

Engraving

Engraving can be used for suitable protective inserts and customized foam components.

Silk-Screen Printing

Logos, identification and suitable graphics can be printed on compatible foam surfaces.

Information Required for an Adhesive EPDM Foam Quote

                   Send Your Adhesive EPDM Requirements

Foam Materials Available from Topsun

Topsun supplies EVA foam, PE foam, XPE foam, IXPE foam, CR foam, EPDM foam, neoprene foam, SBR foam, NBR foam and microcellular soft PVC foam. Materials can be supplied as sheets and rolls or converted into custom industrial foam components.

About Topsun Foam

Topsun supplies foam materials and customized converted components for automotive, electronics, HVAC, appliances, industrial equipment, construction and packaging applications.

Customers can provide drawings, dimensions, samples, foam density, thickness, compression requirements, bonding substrate and service conditions for material and adhesive-lamination evaluation.

Our facility is located in Changzhou City, Jiangsu Province, China, with convenient access to Shanghai Port for international shipments.

Adhesive Open Cell EPDM Foam FAQ

What is adhesive-backed open cell EPDM foam?

It is soft open cell EPDM sponge rubber laminated with pressure-sensitive adhesive and a release liner. It combines low-compression cushioning with easier positioning during installation and assembly.

What is adhesive open cell EPDM foam used for?

Typical applications include foam tapes, gaskets, anti-rattle pads, cushioning components, gap fillers, acoustic parts, vibration-control pads and custom industrial assembly components.

What is the advantage of adhesive backing?

Adhesive backing helps keep the foam in the required location during installation and assembly, reducing movement before the surrounding components are installed.

Does the adhesive permanently hold the component by itself?

That depends on the substrate, adhesive system, contact area, applied load and service environment. The intended mechanical function of the adhesive should be specified before product selection.

What bonding surface information should I provide?

Identify whether the adhesive will bond to metal, painted metal, ABS, PP, another plastic, glass, coated material or another substrate. A physical substrate sample can also help with evaluation.

Does the surface need to be cleaned before installation?

The bonding surface should generally be suitable for adhesive application and free from loose dust, oil, moisture and contamination that could reduce adhesive contact.

Can adhesive EPDM foam be supplied as tape or strips?

Yes. Open cell EPDM foam can be converted into adhesive-backed rolls, strips, tapes, pads, sheets and custom parts according to customer dimensions.

Can Topsun make custom adhesive EPDM foam gaskets?

Yes. Adhesive-backed EPDM foam can be laser cut or die cut according to drawings, dimensions or physical samples.

What densities are shown in the current technical data?

The current test data shows actual densities of 73.8, 93.1 and 108.7 kg/m³ for the three tested grades.

What is the 25% compression strength?

The current ASTM D1056 test results are 1.25, 1.88 and 1.97 kPa for the three tested grades.

What is the 50% compression strength?

The current ASTM D1056 test results are 2.21, 2.69 and 2.91 kPa.

Is open cell EPDM foam waterproof?

Open cell EPDM has interconnected pores and should not automatically be treated as a waterproof or airtight barrier. Closed-cell EPDM is generally more appropriate where strict environmental sealing is required.

Can adhesive EPDM foam be used outdoors?

EPDM rubber provides useful resistance to UV, ozone and weathering, but the complete adhesive-backed construction must be evaluated according to the selected adhesive, temperature, moisture and actual outdoor exposure.

How do I choose the correct density and thickness?

Selection depends on the installation gap, compression level, required softness, component dimensions, foam function and operating environment.

What information should I provide for a quotation?

Provide foam thickness, density if known, finished dimensions, application, bonding substrate, operating conditions, drawing or sample, estimated quantity and any special performance requirements.

How can I request a sample?

Send your requirements to july@topsunfoam.com, including foam thickness, density, dimensions, bonding substrate, application and estimated quantity.

                   Get Adhesive EPDM Foam Sample & Quote
