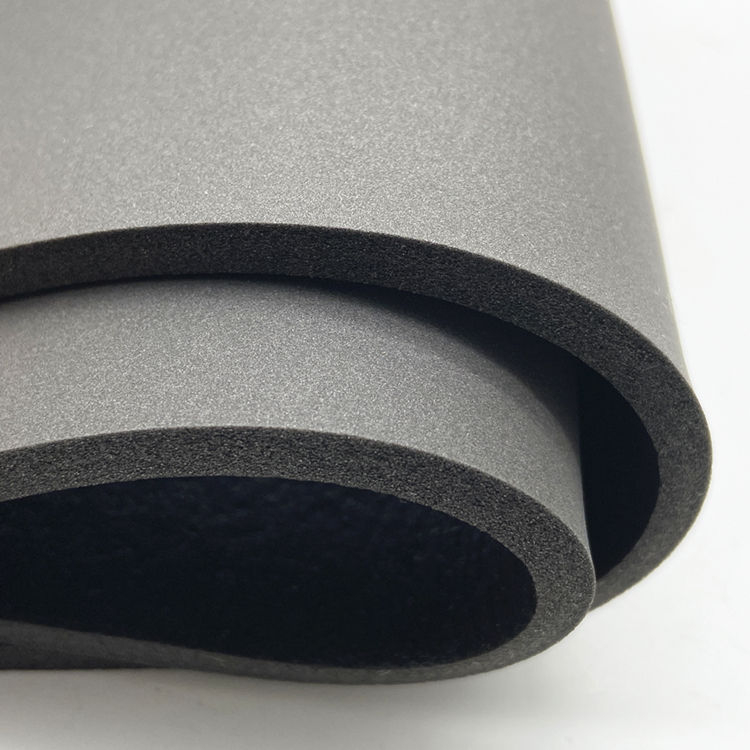

Low Density Good Compression Closed Cell PVC Foam

Closed Cell PVC Foam Sheet for Sealing, Gaskets, HVAC and Waterproof Applications

Topsun closed cell PVC foam, also known as PVC sponge foam or closed cell rubber foam, is a flexible sealing and cushioning material designed for waterproof sealing, dustproof protection, vibration damping, sound attenuation and gasket applications. It is suitable for door and window seals, automotive body seals, HVAC sealing, appliance sealing, electronic device protection and custom die-cut foam gaskets.

PVC sponge foam can be customized by density, hardness, thickness, width, length, adhesive backing, flame-retardant requirement, die-cut shape and packaging method. Topsun supports custom PVC foam sheets, rolls, strips, tapes and gasket parts for industrial sealing, automotive, construction and electronics applications.

PVC Sponge Foam Closed Cell Rubber Foam Features

• Closed cell structure with excellent dustproof and waterproof sealing performance.

• Strong sealing ability for light, air, moisture, dust and vibration control.

• Good weather resistance and low temperature resistance for indoor and outdoor applications.

• Sound attenuation and damping performance for vehicles, equipment and building components.

• Flexible structure that conforms to curves, irregular shapes and uneven contact surfaces.

• Can be supplied with adhesive backing, release liner, die cutting, slitting, laminating and custom converting.

Specification of PVC Sponge Foam

PVC Sponge Foam Video

What Is Closed Cell PVC Foam?

Polyvinyl Chloride PVC foam is a closed-cell PVC sponge foam designed to provide an economical solution for sealing light, air, moisture, dust and vibration. Its soft closed-cell structure allows the foam to compress and conform to irregular surfaces while maintaining reliable sealing performance.

By adjusting density, hardness, resilience and other properties, PVC sponge foam can deliver different performance levels for specific application scenarios. Typical customizable density range is 80kg/m³ to 500kg/m³, and hardness can be customized from Shore 00 5° to 99° according to the required sealing force and application environment.

Closed cell PVC foam is highly suitable for vehicle body vibration damping, door and window sealing, water tank sealing, HVAC sealing, cushioning for electronic products, appliance sealing, outdoor lighting protection and custom foam gasket applications.

Applications of PVC Sponge Foam

• Door and window sealing strips.

• Truck, cab and vehicle body seals.

• HVAC sealing and air-conditioning insulation parts.

• Appliance sealing and vibration damping pads.

• Die-cut gaskets and custom sealing components.

• Electronic device sealing and cushioning.

• Railway, marine and outdoor equipment applications.

• Outdoor lighting fixtures and enclosure sealing.

Custom PVC Foam Sheet, Roll, Strip and Gasket Options

Topsun can supply closed cell PVC foam in sheets, rolls, strips, tapes, die-cut gaskets and adhesive-backed foam parts. We can customize thickness, density, hardness, width, length, color, adhesive backing, release liner, lamination, die-cut shape and packaging method.

For sealing applications, important selection factors include compression space, required sealing force, water exposure, outdoor weathering, flame-retardant requirement, adhesive type, installation surface and service temperature. Topsun can recommend suitable PVC sponge foam grades according to your project details.

Topsun Foam Processing Capability

Topsun is a professional supplier of foam materials and custom foam products. We can provide EVA foam, PE foam, XPE foam, IXPE foam, CR foam, EPDM foam, neoprene foam, SBR foam, NBR foam and micro-cell soft PVC foam. At the same time, we have advanced processing capabilities to convert foam materials into the products you need.

1. Cutting: cut foam sheets, rolls, strips or parts according to customer size requirements.

2. Slicing: slice foam thickness according to the required specification.

3. Lamination: provide hot melt film lamination, flame lamination and pressure-sensitive adhesive lamination.

4. Laser cutting: cut foam drawings without opening molds for some customized foam shapes.

5. Die cutting: open molds according to customer design and produce foam pads, seals and inserts efficiently.

6. Compression molding: manufacture three-dimensional molded foam and foam composite parts with defined geometry and dimensional requirements.

7. Engraving: produce tool box inserts and packaging inserts according to customer requirements.

8. Silk-screen printing: print logos and patterns on the surface of foam products.

9. Adhesive backing: apply adhesive and release liner to produce foam tapes and self-adhesive foam parts.

About Topsun Foam

Topsun is a professional foam supplier with custom converting capabilities for sealing, cushioning, insulation, packaging and protective foam applications. Our foam materials can be supplied as sheets, rolls, strips, tapes, molded parts and die-cut products.

Our factory is located in Changzhou City, Jiangsu Province, about one hour by road to Shanghai Port. Topsun provides foam material selection, custom processing, sample support and OEM foam converting services for customers worldwide.

PVC Sponge Foam FAQ

What is closed cell PVC foam?

Closed cell PVC foam is a flexible PVC sponge foam material with a closed-cell structure. It is used for waterproof sealing, dustproof protection, cushioning, vibration damping, sound attenuation and custom gasket applications.

What is PVC sponge foam used for?

PVC sponge foam is used for door and window sealing, vehicle body seals, HVAC sealing, appliance sealing, die-cut gaskets, electronic device cushioning, railway applications, marine applications and outdoor lighting fixture seals.

Is closed cell PVC foam waterproof?

Closed cell PVC foam has excellent water resistance and is suitable for many waterproof sealing applications. Final sealing performance depends on foam density, hardness, compression ratio, adhesive backing and installation surface.

Can Topsun customize PVC foam density and hardness?

Yes. Topsun can customize PVC foam density, hardness, thickness, width, length and compression performance according to different sealing and cushioning requirements. Density can be adjusted for different application scenarios.

Can PVC sponge foam be supplied with adhesive backing?

Yes. Topsun can provide PVC sponge foam with pressure-sensitive adhesive backing and release liner. It can be supplied as adhesive PVC foam sheets, rolls, strips, tapes and die-cut gasket parts.

Can Topsun make custom die-cut PVC foam gaskets?

Yes. Topsun can process PVC foam by cutting, slicing, lamination, adhesive backing, laser cutting and die cutting. Customers can provide drawings, samples or size requirements for custom PVC foam gaskets and sealing parts.

How do I choose the right closed cell PVC foam?

To choose the right closed cell PVC foam, confirm thickness, density, hardness, compression space, sealing requirement, waterproof requirement, flame-retardant requirement, adhesive backing, operating temperature and part size. These details help determine the suitable foam grade and processing method.

How can I get samples of closed cell PVC foam?

Send your inquiry to july@topsunfoam.com with your required thickness, density, hardness, size, adhesive backing requirement, application and estimated quantity. Topsun will check your requirements and reply within 24 hours.
