P160
Topsun
100-450 Kg/M³
1-25mm
| Availability: | |
|---|---|
Product Description

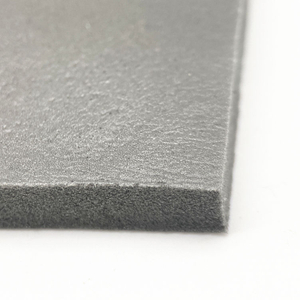

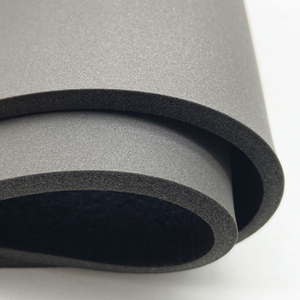

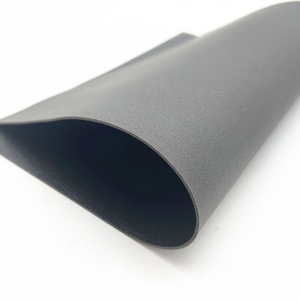

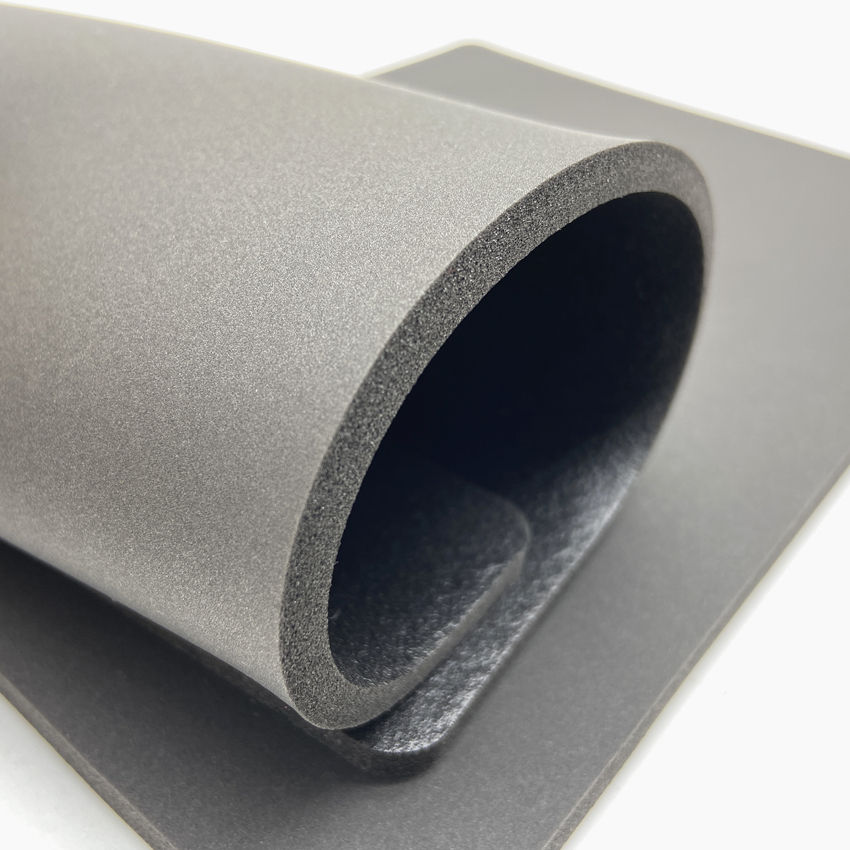

Topsun anti-vibration medium density PVC foam is a flexible closed-cell PVC sponge foam designed for vibration damping, sealing, sound attenuation, cushioning and custom gasket applications. Its balanced density, compressibility and dimensional stability make it suitable for automotive, HVAC, appliances, electronics, railway, marine, lighting and general industrial equipment.
The closed-cell structure helps protect against air, moisture and dust while the flexible foam conforms to curved, uneven and irregular contact surfaces. Topsun can supply PVC foam as sheets, rolls, strips, adhesive-backed tapes, anti-vibration pads and custom die-cut gaskets according to drawings, samples or application requirements.
Request PVC Foam Samples & Quote
• Vibration damping: helps reduce vibration transmission between equipment, panels, housings and structural components.
• Closed-cell sealing: suitable for sealing against air, moisture, dust and light when properly compressed and installed.
• Flexible and conformable: adapts to curves, uneven contact areas and irregular surfaces.
• Low water absorption: supports sealing and protection in applications exposed to moisture.
• Weather and UV resistance: suitable for many indoor and outdoor sealing applications.
• Sound attenuation: helps reduce rattling, impact noise and vibration-generated noise in equipment and vehicle assemblies.
• Chemical resistance: resistant to dilute acids and alkalis for many industrial environments.
• Stable converting performance: suitable for slitting, laminating, adhesive backing, laser cutting and die cutting.
| Property | Value |
| Density | 180±20 kg/m³ |
| Shore 00 Hardness | 30±10° |
| 30% Compression Set | ≤10% |
| Tensile Strength | ≥230 kPa |
| Elongation | ≥80% |
| Flammability | UL-94 V-0 UL-94 HF-1 FMVSS 302 |
Different density, hardness, thickness and compression characteristics can be selected according to sealing pressure, vibration conditions and final application requirements.
PVC foam, or polyvinyl chloride sponge foam, is a flexible closed-cell material used where sealing, cushioning and vibration control need to be combined in a single component. Its closed-cell structure helps restrict the penetration of air, moisture and dust, while its compressibility allows it to conform to mating surfaces.
Medium density PVC foam provides greater support than very soft foam while maintaining enough flexibility for gasketing and damping. This balance makes it useful for assemblies where the foam must absorb vibration or shock without losing its sealing function under compression.
By adjusting density, hardness, resilience and compression characteristics, Topsun can supply PVC sponge foam for different industrial requirements. Typical customizable density ranges from 80 kg/m³ to 500 kg/m³, while hardness can be adjusted from Shore 00 5° to 99° according to the required application.
The material is commonly converted into sheets, rolls, strips, tapes, pads and die-cut gaskets for vehicle bodies, HVAC systems, doors and windows, appliances, electronics, water tank seals, outdoor lighting and industrial equipment.
• Automotive and transportation: truck and cab seals, vehicle body seals, anti-vibration pads and vibration damping components.
• HVAC systems: air duct seals, equipment seals, air-conditioning insulation and gap-filling components.
• Doors and windows: flexible sealing strips for gaps, frames and uneven contact surfaces.
• Appliances: sealing strips, vibration damping pads, cushioning parts and noise reduction components.
• Industrial equipment: custom gaskets, equipment seals, vibration isolation pads and protective foam components.
• Electronics: enclosure sealing, cushioning, shock absorption and protection between components.
• Railway and marine equipment: sealing, cushioning and vibration control components.
• Outdoor lighting: fixture seals and enclosure protection where low water absorption and weather resistance are required.

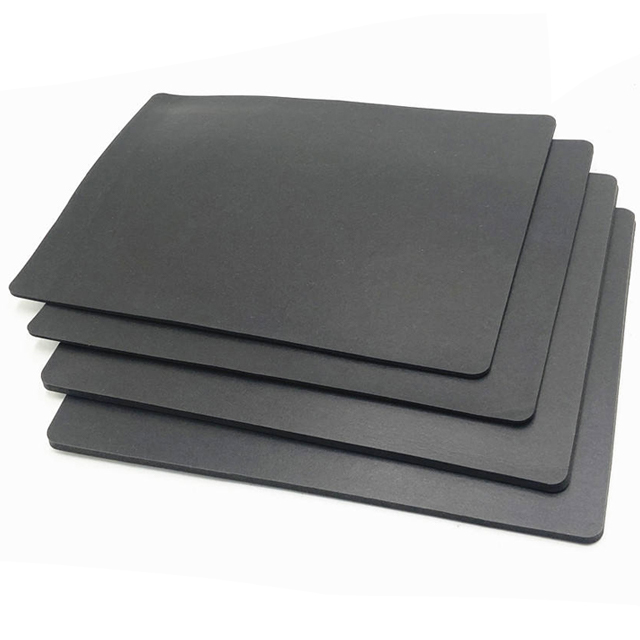

Topsun can convert medium density PVC sponge foam into multiple formats for industrial production and assembly. Available formats include foam sheets, rolls, narrow strips, adhesive-backed tapes, anti-vibration pads, sealing components and custom die-cut gaskets.
Custom options can include thickness, density, hardness, width, length, color, pressure-sensitive adhesive backing, release liner, lamination, slit width, die-cut shape, compression performance and packaging method.
Customers can provide technical drawings, samples, dimensional requirements or application information. Topsun can then evaluate the required foam grade and converting method for prototype, sampling and production.
Request Custom PVC Foam Gaskets
Selecting a suitable PVC foam grade depends on both the required sealing performance and the mechanical conditions of the assembly. Providing the following information helps Topsun evaluate the appropriate material and processing method.
• Required foam thickness and available compression space.
• Required density and hardness.
• Vibration level and damping requirements.
• Sealing requirements for air, moisture, dust or light.
• Indoor or outdoor operating environment.
• Flame-retardant requirements.
• Requirement for pressure-sensitive adhesive backing.
• Installation surface and part dimensions.
• Operating conditions and required finished part format.
Topsun supplies foam materials and custom converted foam components for sealing, cushioning, anti-vibration, insulation and protective applications. In addition to PVC foam, available materials include EVA foam, PE foam, XPE foam, IXPE foam, CR foam, EPDM foam, neoprene foam, SBR foam and NBR foam.
1. Cutting: foam sheets, rolls, strips and parts can be cut to customer dimensions.
2. Slicing: foam can be sliced to the required finished thickness.
3. Lamination: available processes include hot-melt film lamination, flame lamination and pressure-sensitive adhesive lamination.
4. Laser cutting: suitable custom shapes can be cut from drawings without opening conventional cutting molds.
5. Die cutting: custom foam pads, seals, gaskets and inserts can be produced according to customer designs.
6. Compression molding: three-dimensional molded foam and composite foam parts can be produced for defined shapes and dimensional requirements.
7. Engraving: suitable for tool box inserts, protective inserts and custom foam packaging.
8. Silk-screen printing: logos and patterns can be printed on suitable foam product surfaces.
9. Adhesive backing: pressure-sensitive adhesive and release liner can be applied for self-adhesive foam tapes, strips and die-cut parts.
Topsun is a professional foam material supplier with converting capabilities for sealing, cushioning, vibration damping, insulation, packaging and protective applications. Foam materials can be supplied as sheets, rolls, strips, tapes, molded parts and custom die-cut components.

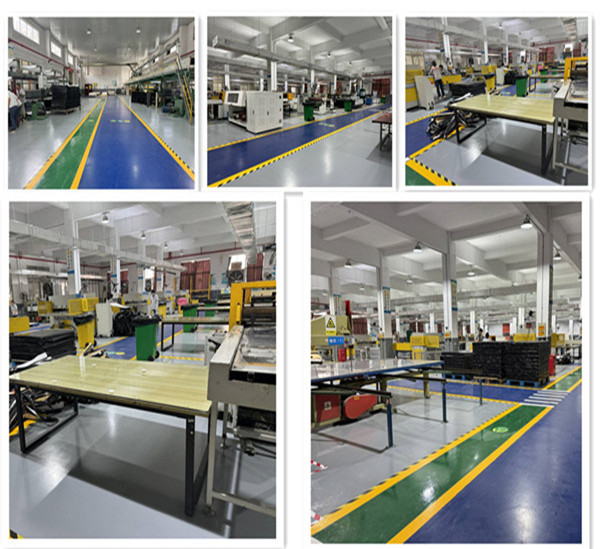

Our factory is located in Changzhou City, Jiangsu Province. Topsun supports material selection, sample evaluation, custom processing and OEM foam converting for customers worldwide.
Contact Topsun for Your Foam Project
Anti-vibration medium density PVC foam is a flexible closed-cell PVC sponge foam used for vibration damping, sealing, cushioning, sound attenuation and gasket applications. Its medium-density structure provides a balance between compressibility, support and dimensional stability.
Typical applications include automotive body seals, truck and cab seals, HVAC duct seals, door and window seals, appliance components, vibration damping pads, electronic equipment cushioning, outdoor lighting seals and custom die-cut industrial gaskets.
A density of approximately 180±20 kg/m³ provides more support than low-density sponge foam while retaining flexibility and compressibility. This makes it suitable for applications that require both vibration damping and stable sealing under compression.
Yes. Medium density closed-cell PVC foam can absorb vibration and help isolate contact between components. It is commonly used as anti-vibration pads, equipment seals, vehicle body seals and cushioning components.
Closed-cell PVC foam has low water absorption and is suitable for many moisture-resistant sealing applications. Final sealing performance depends on foam density, hardness, compression, joint design, adhesive backing and the installation surface.
Yes. The flexible foam structure can conform to curved, uneven and irregular contact surfaces, making it useful for gasketing, gap filling and sealing assemblies where rigid materials may not provide consistent contact.

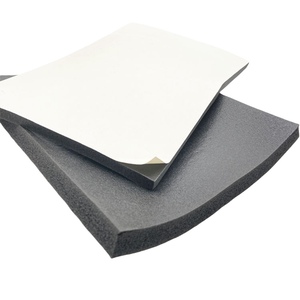

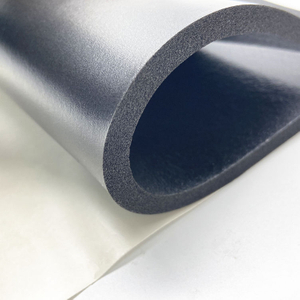

Yes. Topsun can provide medium density PVC foam with pressure-sensitive adhesive and release liner. Adhesive-backed foam can be supplied as sheets, rolls, strips, tapes, pads and custom die-cut gasket parts.
Yes. Topsun provides cutting, slicing, lamination, adhesive backing, laser cutting and die-cutting services. Customers can provide drawings, samples, dimensions or application information for custom PVC foam gaskets, seals and anti-vibration pads.
The listed flammability options for this PVC foam include UL-94 V-0, UL-94 HF-1 and FMVSS 302. Customers should confirm the required standard, foam thickness, density and final application conditions before ordering.
The appropriate density and hardness depend on available compression space, sealing pressure, vibration level, required support, installation method and operating conditions. Providing your application details, dimensions and expected compression helps Topsun recommend a suitable foam grade.
Please provide the required thickness, density or hardness, width and length, finished part dimensions, adhesive requirement, application, operating conditions, drawing or sample if available, and estimated order quantity.
Contact Topsun with your required thickness, density, hardness, dimensions, adhesive requirement, application and estimated quantity. Our team can review your requirements and arrange suitable sample options.
