Closed Cell Polyethylene Foam

Topsun colorful closed-cell PE foam rolls and sheets are available in 25–144 kg/m³ densities for packaging, insulation and custom parts, with cutting, lamination, die cutting and adhesive backing.
  • pe foam

  • Topsun

  • 20-96kg/M3

  • 160-450kpa

  • >120%

  • 1000*2000mm, 1500*2000mm, 48"*96"

  • 1-100mm

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Colorful Closed-Cell Polyethylene Foam Rolls and Sheets

Topsun supplies cross-linked closed-cell polyethylene foam in rolls, sheets, blocks and custom converted forms for protective packaging, surface protection, insulation, automotive components, construction, industrial cushioning and recreational applications.

The current PE foam range includes eight grades from 25 kg/m³ to 144 kg/m³. Different grades provide different levels of hardness, tensile strength, tear resistance and compression resistance, allowing buyers to select the material according to product weight, support requirements, cushioning performance and finished-part design.

Multiple colors can be evaluated for packaging, identification and finished-product requirements. Topsun also provides cutting, thickness slicing, lamination, laser cutting, die cutting, compression molding, engraving, silk-screen printing and adhesive backing.

Closed-Cell PE Foam Product Information

Property Specification
Material Cross-Linked Polyethylene Foam / PE Foam
Cell Structure Closed Cell
Density Range 25–144 kg/m³
PE Grades PE25, PE30, PE40, PE45, PE60, PE90, PE120 and PE140
Forms Roll, Sheet, Block, Strip, Pad and Custom Converted Part
Standard Block Sizes 1000 × 2000 mm, 1200 × 2400 mm, 1500 × 2500 mm
Color Multiple Colors and Custom Color Requirements
Main Functions Cushioning, Impact Protection, Moisture Resistance, Thermal Insulation, Surface Protection and Support
Custom Processing Cutting, Slicing, Lamination, Laser Cutting, Die Cutting, Compression Molding, Engraving, Printing and Adhesive Backing

Key Features of Cross-Linked Polyethylene Foam

  • Lightweight: provides useful cushioning and support while keeping component weight relatively low.

  • Closed-cell structure: provides low water absorption and useful resistance to moisture penetration.

  • Impact cushioning: suitable for protective packaging, case inserts and components exposed to handling and transport impacts.

  • Wide density range: current grades range from 25 kg/m³ to 144 kg/m³ for different levels of softness, firmness and support.

  • Compression recovery: current listed compression-set values range from 2% to 3% depending on PE grade.

  • Thermal insulation: listed thermal conductivity values range from approximately 0.037 to 0.038 W/m·K.

  • Chemical resistance: polyethylene foam is resistant to many commonly encountered chemicals, although compatibility should be confirmed for the actual chemical concentration and exposure conditions.

  • Surface protection: suitable foam grades can help reduce direct contact, scratching and impact damage during handling and transportation.

  • Easy conversion: PE foam can be sliced, cut, laminated, die cut, engraved and supplied with adhesive backing.

PE Foam Technical Specifications

The following table shows the current listed test results for Topsun PE25, PE30, PE40, PE45, PE60, PE90, PE120 and PE140 grades. Final material selection should consider density together with hardness, tensile strength, tear resistance and compression performance.

Testing Item Testing Standard Unit PE25 PE30 PE40 PE45 PE60 PE90 PE120 PE140 Block Size
Density GB/T 6343 kg/m³ 25 32 42 49 62 96 128 144 1000 × 2000 mm
                   1200 × 2400 mm
                   1500 × 2500 mm
Tensile Strength GB/T 6344 kPa 160 170 305 305 305 350 380 400
Elongation GB/T 6344 % 165 174 190 190 190 160 160 160
Hardness — Shore C 18 23 26 30 42 55 60 72
Tear Strength ASTM D3575 N/mm 1.0 1.2 1.3 1.5 2.3 4.4 5.0 6.0
25% Compression Force Deflection GB/T 8813 kPa 35 45 60 70 70 80 95 95
Compression Set GB/T 6669 % 2 2 2 2 2 2 3 3
Water Absorption Rate — g/cm³ 0.002 0.001 0.001 0.001 0.001 0.001 0.001 0.001
Thermal Conductivity — W/m·K 0.037 0.038 0.038 0.038 0.038 0.038 0.037 0.037

Closed-Cell PE Foam Video

What Is Cross-Linked Closed-Cell Polyethylene Foam?

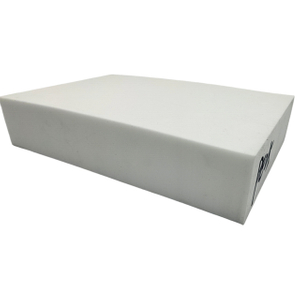

Cross-linked closed-cell polyethylene PE foam sheet

Cross-linked polyethylene foam is a lightweight cellular material made from polyethylene with a closed-cell structure.

Cross-linking creates a more interconnected polymer structure before or during foam production, helping produce fine cells, stable physical properties and a surface suitable for a wide range of fabrication processes.

Closed cells help limit moisture penetration and provide useful cushioning, thermal insulation and buoyancy characteristics. The material can be supplied as rolls, sheets, blocks or fabricated components according to the application.

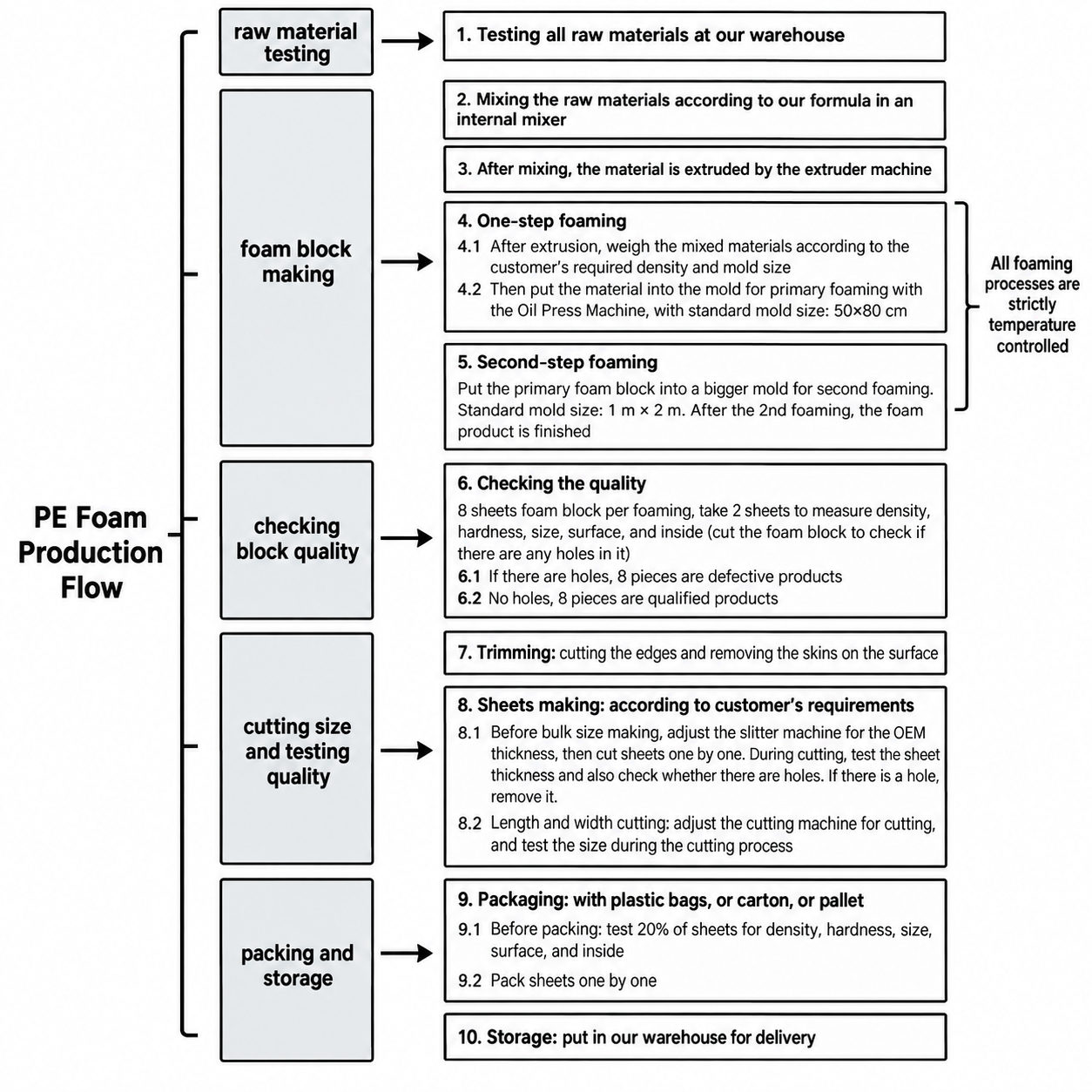

Topsun PE Foam Process Flow

Topsun closed cell polyethylene foam production and converting process flow

PE foam production and conversion can include material preparation, foaming, cross-linking, block or sheet preparation, thickness slicing, cutting, lamination, die cutting, engraving, adhesive application, inspection and packing.

The final processing route depends on foam grade, thickness, dimensions, finished geometry and customer application.

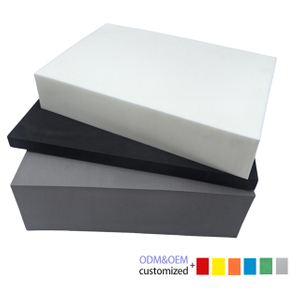

PE Foam Rolls, Sheets and Blocks

Form Typical Use Processing
PE Foam Roll Continuous lining, protection, insulation, underlayment, tape and converting applications. Slitting, cutting, lamination and adhesive backing.
PE Foam Sheet Packaging pads, separators, insulation, protective sheets and fabricated parts. Cutting, die cutting, lamination, engraving and adhesive backing.

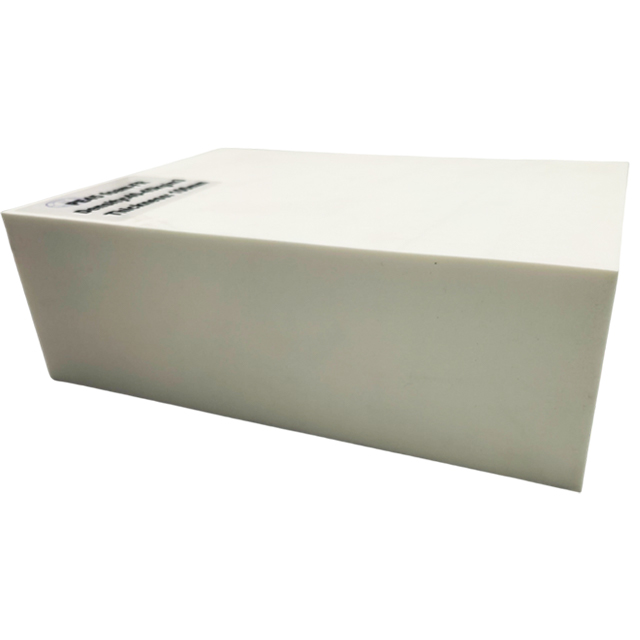

PE Foam Block Thick packaging, case inserts, deep cavities and custom converted components. Slicing, engraving, cutting and lamination.

How to Select PE Foam Density

Density is an important PE foam selection parameter, but it should not be considered independently from hardness, compression force, thickness and finished application.

Grade Density Shore C 25% CFD
PE25 25 kg/m³ 18 35 kPa
PE30 32 kg/m³ 23 45 kPa
PE40 42 kg/m³ 26 60 kPa
PE45 49 kg/m³ 30 70 kPa
PE60 62 kg/m³ 42 70 kPa
PE90 96 kg/m³ 55 80 kPa
PE120 128 kg/m³ 60 95 kPa
PE140 144 kg/m³ 72 95 kPa

Lower-density grades provide lighter and softer cushioning. Higher-density grades generally provide greater hardness, tensile strength and tear resistance and may be preferred where the finished component requires more support or better shape retention.

Colorful PE Foam for Protective Packaging

Closed-cell PE foam is widely used for protective packaging because it combines low weight, resilience and impact cushioning.

Typical applications include packaging for electronics, tools, instruments, machinery components, appliances and other products requiring cushioning, separation, blocking or bracing during storage and transport.

Packaging material should be selected according to product weight, fragility, handling conditions, required cushioning distance and available package dimensions.

PE Foam for Tool Box and Case Inserts

PE foam blocks and sheets can be converted into custom tool box inserts, equipment-case inserts, protective trays and reusable packaging components.

Cavities can be produced according to the dimensions of tools, instruments or equipment. Different foam colors can also be evaluated where visual identification or tool organization is required.

For custom insert development, provide product dimensions, weight, case internal dimensions, required cavity depth and a CAD drawing or physical reference sample where available.

PE Foam for Surface Protection

Suitable polyethylene foam grades can be used between finished products and hard packaging surfaces to provide cushioning and reduce direct contact.

This can help reduce scratching, denting and handling damage when the appropriate density, surface condition and foam thickness are selected.

For painted, polished, optical or other sensitive surfaces, compatibility should be evaluated using the actual product surface and intended foam configuration.

PE Foam for Thermal Insulation

Topsun's current PE foam grades list thermal conductivity values from approximately 0.037 to 0.038 W/m·K.

The closed-cell structure makes polyethylene foam suitable for evaluation in insulation components, floor systems, packaging, pipe-related insulation and other applications where low thermal conductivity and moisture resistance are useful.

Finished thermal performance depends on material thickness, density, compression, installation design and the complete assembly.

Automotive and Transportation Applications

PE foam can be converted into pads, seals, spacers, anti-rattle components, protective layers and vibration-control parts for suitable automotive and transportation assemblies.

Density, thickness, compression performance, adhesive requirements and installation conditions should be defined according to the finished automotive component.

Construction and Flooring Applications

Closed-cell polyethylene foam can be evaluated for expansion-joint filling, sealing strips, floor underlayment, insulation layers and other suitable construction applications.

Building applications should specify the required density, thickness, compression performance, moisture conditions and applicable construction requirements before final material selection.

Where defined flame-performance or building compliance is required, the required test standard should be identified before selecting a material grade.

Marine, Sports and Recreational Applications

The lightweight closed-cell structure of polyethylene foam provides buoyancy and low water absorption, making selected grades suitable for evaluation in flotation, pool, sports and recreational foam products.

Where the finished product performs a safety or flotation function, the complete product should be tested according to the applicable requirements for the destination market.

Medical and Electronics Packaging

Selected PE foam grades can be converted into protective packaging and equipment-case inserts for medical devices, laboratory instruments, electronics and precision equipment.

Required cleanliness, material compliance, electrostatic-control performance or other application-specific requirements should be confirmed before selecting a foam grade.

Typical PE Foam Applications

Custom polyethylene foam tool box insert

PE Foam Tool Box Insert

Adhesive backed polyethylene foam tape

PE Foam Tape

Colorful closed-cell polyethylene foam roll

PE Foam Roll and Sheet

Custom PE Foam Processing Capabilities

Cutting

PE foam sheets, blocks and rolls can be cut according to customer dimensions and finished-part requirements.

Thickness Slicing

Larger foam blocks can be sliced to suitable thicknesses for sheets, packaging inserts, pads and further conversion.

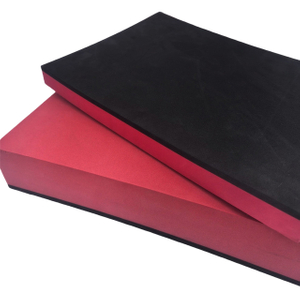

Lamination

Available lamination methods can include hot-melt film lamination, flame lamination and pressure-sensitive adhesive lamination for suitable foam constructions.

Laser Cutting

Suitable PE foam shapes can be cut directly from digital drawings without dedicated cutting dies for applicable projects.

Die Cutting

Die cutting can produce repeatable pads, strips, seals, gaskets and packaging components efficiently for suitable production quantities.

Compression Molding

Compression molding can be evaluated for suitable three-dimensional foam and foam-composite components with defined geometry.

Engraving

Engraving is suitable for custom tool box inserts, protective packaging inserts and product-location cavities.

Silk-Screen Printing

Logos, identification and suitable patterns can be printed on compatible foam surfaces.

Adhesive Backing

Pressure-sensitive adhesive and release liner can be applied to suitable foam sheets, strips, pads, seals and tapes.

Information Required for a PE Foam Quote

  • Application

  • Roll, sheet, block or finished-part requirement

  • Required density or PE grade

  • Required thickness

  • Length and width

  • Required color

  • Compression or cushioning requirements where applicable

  • Product weight for packaging applications

  • Drawing, CAD file or physical sample for custom parts

  • Lamination requirements

  • Adhesive backing requirements

  • Prototype quantity

  • Estimated production quantity

About Topsun Foam

Topsun supplies PE foam, EVA foam, XPE foam, IXPE foam, CR foam, EPDM foam, neoprene foam, SBR foam, NBR foam and microcellular soft PVC foam for packaging, automotive, construction, insulation and industrial applications.

Foam materials can be supplied in sheets, rolls, blocks and custom converted forms according to customer dimensions and finished-part requirements.

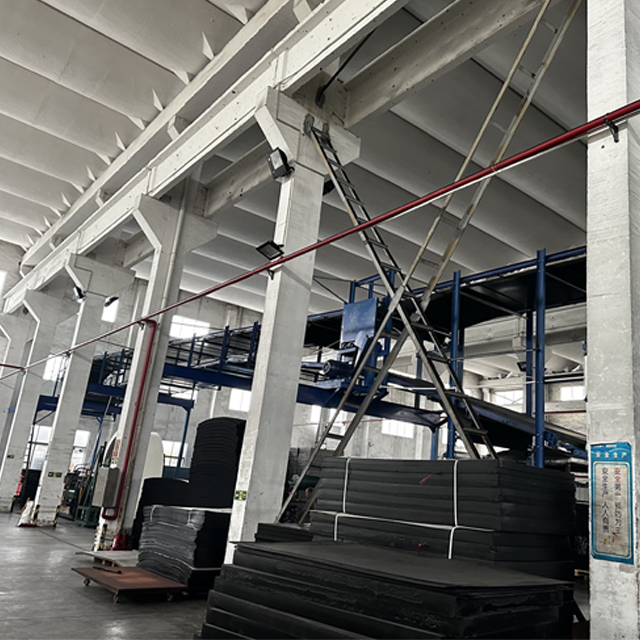

Our facility is located in Changzhou City, Jiangsu Province, China, with convenient access to Shanghai Port for international shipments.

Topsun polyethylene foam products and custom processing
Custom PE and EVA foam protective packaging insert
Closed cell polyethylene foam protective packaging

Closed-Cell Polyethylene Foam FAQ

What is closed-cell polyethylene foam?

Closed-cell polyethylene foam is a lightweight PE foam in which individual cells are largely separated from one another. This structure provides cushioning, low water absorption, thermal insulation and useful mechanical protection.

Is the PE foam on this page cross-linked?

Yes. This page describes cross-linked closed-cell polyethylene foam supplied in rolls, sheets, blocks and custom converted forms.

What PE foam densities are available?

The current Topsun range includes listed densities of 25, 32, 42, 49, 62, 96, 128 and 144 kg/m³.

What PE foam forms can Topsun supply?

PE foam can be supplied in rolls, sheets, blocks, strips, pads and custom fabricated components depending on density, thickness and application.

What standard block sizes are listed?

The current specification lists 1000 × 2000 mm, 1200 × 2400 mm and 1500 × 2500 mm block sizes.

How do I choose the right PE foam density?

Density should be selected according to product weight, required cushioning, compression resistance, thickness, support requirements and finished component geometry.

What is the hardness range?

Current listed Shore C hardness values range from 18 for PE25 to 72 for PE140.

What is the 25% compression force range?

Current listed 25% Compression Force Deflection values range from 35 kPa to 95 kPa depending on the PE grade.

What is the compression set?

Current listed compression-set values are 2% for PE25 through PE90 and 3% for PE120 and PE140.

Is closed-cell PE foam waterproof?

Closed-cell PE foam has low water absorption and good moisture resistance. Finished water resistance depends on cut edges, joints, compression, adhesive systems and the complete product construction.

What is the thermal conductivity of the PE foam?

The current technical table lists thermal conductivity values of approximately 0.037–0.038 W/m·K depending on PE grade.

Can PE foam be used for protective packaging?

Yes. PE foam is suitable for cushioning, blocking, bracing, separation and custom protective inserts. Density and thickness should be matched to the product weight and protection requirements.

Can Topsun make custom tool box inserts?

Yes. PE foam can be cut or engraved into customized tool and case inserts according to drawings, dimensions or physical product samples.

Can PE foam be supplied with adhesive backing?

Yes. Pressure-sensitive adhesive and release liner can be applied to suitable foam sheets, rolls, strips, pads, tapes and custom die-cut parts.

Can PE foam be laminated?

Yes. Suitable PE foam materials can be laminated to other foam layers, films, fabrics or adhesive systems according to project requirements and material compatibility.

Is PE foam fireproof?

Standard PE foam should not automatically be described as fireproof. If a project requires defined flame-retardant performance, provide the required test standard so an appropriate material can be evaluated.

Can PE foam be used for flotation products?

The lightweight closed-cell structure provides buoyancy and low water absorption, so selected PE foam grades can be evaluated for suitable flotation and recreational products. Safety-critical products should be validated to the applicable finished-product requirements.

What information should I provide for a quotation?

Please provide the application, required density if known, roll or sheet dimensions, thickness, color, processing requirements, drawing or sample for custom parts and estimated quantity.

How can I request a PE foam sample?

Send your requirements to july@topsunfoam.com, including foam density, thickness, dimensions, color, application, processing requirements and estimated quantity.
