ixpe foam
Topsun
25kgs/M3-300kgs/M3
Width:1000mm-1500mm
3-50mm
Product Description

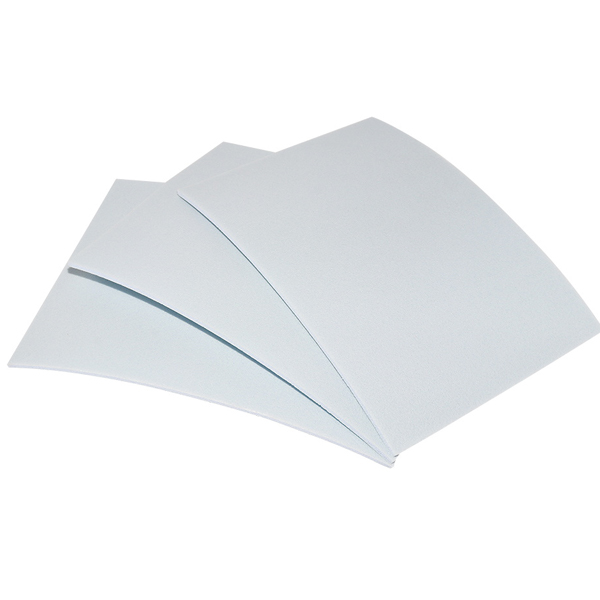

TOPSUN supplies IXPE polyethylene foam, also known as irradiation cross-linked polyethylene foam, in sheets and rolls for industrial cushioning, insulation, packaging, automotive interior, electronics, sports, medical and construction applications.
IXPE foam has a fine closed-cell structure, smooth surface, low water absorption, lightweight performance, shock absorption, sound insulation and thermal insulation. Compared with ordinary polyethylene foam, cross-linked IXPE foam provides better dimensional stability, resilience, processability and physical performance for custom foam parts.
| Item | Specification |
|---|---|
| Product Name | IXPE Polyethylene Foam |
| Material | Irradiation cross-linked polyethylene foam |
| Brand | TOPSUN |
| Density Range | 25 kg/m³ - 300 kg/m³ |
| Width | 1000 mm - 1500 mm |
| Thickness | 3 mm - 50 mm |
| Colors | Black, white and customized colors |
| Available Forms | Foam sheet, foam roll, laminated foam and custom converted foam parts |
| Custom Processing | Gluing, printing, lamination, die cutting, punching, slitting, cutting, carving, hot forming and molding |
IXPE foam is a soft and semi-rigid closed-cell foam made from polyethylene through irradiation cross-linking and foaming. The cross-linked structure improves foam consistency, resilience, tensile strength, tear resistance, cushioning performance and thermal stability.
Because IXPE foam is lightweight, low-odor, moisture-resistant and easy to convert, it is widely used as a functional material for automotive interiors, precision packaging, HVAC insulation, sports pads, medical cushioning, electronic protection, construction joints and custom industrial foam parts.
The following IXPE foam specification table helps engineers, purchasing managers and product developers compare expansion ratios, density, hardness, tensile strength, elongation, tear strength, compression set, dimensional change, water absorption and thermal conductivity.
T refers to the transverse direction, and L refers to the longitudinal direction. Custom performance can be discussed according to the final application, thickness, lamination structure and processing method.
| IXPE Foam Specification | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Test Item | Index | Standards | ||||||||||
| 3x | 5x | 8x | 10x | 15x | 20x | 25x | 30x | 35x | 40x | |||
| Density (kg/m³) | 300±40 | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±3 | 26±3 | GB/T 6343 | |
| Shore Hardness (°) | Thickness ＞3 mm | 65~75 | 60~70 | 50~60 | 45~50 | 35~45 | 30~35 | 25~30 | 18~25 | 13~18 | 13~18 | GB/T 2411 |
| Thickness ≤3 mm | — | 55~65 | 45~55 | 35~45 | 25~35 | 20~25 | 15~20 | — | — | |||
| Tensile Strength (MPa) | T | ≥1.4 | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.4 | ≥0.3 | ≥0.2 | ≥0.15 | ≥0.15 | GB/T 6344 |
| L | ≥1.6 | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.5 | ≥0.4 | ≥0.25 | ≥0.2 | ≥0.2 | ||
| Elongation (%) | T | ≥210 | ≥200 | ≥150 | ≥130 | ≥130 | ≥130 | ≥110 | ≥110 | ≥100 | ≥100 | GB/T 6344 |
| L | ≥230 | ≥220 | ≥170 | ≥150 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 | ≥110 | ||
| Tear Strength (kN/m) | T | ≥10 | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 | ≥1.3 | GB/T 10808 |
| L | ≥10 | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | ≥1.2 | ||
| Compression Set / Compressed Distortion (%) 23℃±2℃, 22h | ≤2 | ≤2 | ≤3 | ≤5 | ≤7 | ≤8 | ≤9 | ≤10 | ≤11 | ≤11 | GB/T 6669 | |
| Size Change Rate (%) 70±2℃, 22h | T | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-6 | GB/T 8811 |
| L | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | ||
| Water Absorption (g/cm²) 23℃±2℃, 24h | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 | ≤0.05 | GB/T 1034 | |
| Thermal Conductivity (W/m·K) | ≤0.095 | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.049 | ≤0.045 | ≤0.040 | ≤0.040 | GB/T 10297 | |
Closed-cell structure: helps reduce water absorption and improves cushioning, insulation and protection performance.
Thermal insulation: independent cells reduce heat transfer caused by air convection, making IXPE suitable for HVAC, refrigerator, air-conditioning and building insulation uses.
Impact resistance: semi-rigid foam recovers after compression and helps protect precision instruments, semiconductors, electronics and fragile products.
Sound absorption: the closed-cell structure helps reduce noise and vibration in automotive, e-bike and industrial applications.
Excellent processability: IXPE foam can be laminated, vacuum formed, hot formed, die cut, punched, slit, engraved and bonded with other materials.
Chemical resistance: IXPE foam is odorless, lightweight, moisture-resistant, oil-resistant and acid-resistant for many industrial converting projects.
IXPE polyethylene foam is selected when buyers need a lightweight foam material with cushioning, insulation, moisture resistance and clean surface quality. It can be used as a base foam, laminated foam or custom converted foam component.
| Application Area | Typical Uses |
|---|---|
| Automotive | Interior trim, roof liner, air conditioner parts, noise reduction pads and vibration control materials |
| Packaging | Protective packaging, cushioning inserts, precision instrument packaging and electronic product protection |
| Construction | Thermal insulation, expansion joint filling, flooring underlayment and sealing materials |
| Electronics | Gaskets, shock absorption pads, protective liners and custom die-cut foam parts |
| Sports and Leisure | Protective pads, sports mats, exercise products and lightweight cushioning components |
| Medical and Hygiene | Soft cushioning, clean foam pads and converted foam components for selected medical-related uses |
TOPSUN can convert IXPE foam into custom sizes, shapes and composite structures according to your drawing, sample or application requirement.
Hot press molding: heated foam is placed into a mold, pressed and cooled to create a stable shape.
Vacuum forming: sheet or roll material is heated, formed in the mold and cooled for shaped foam parts.
Thermal bonding: IXPE foam is heated and compounded with other materials for composite foam structures.
Punching and die cutting: foam is cut into required shapes by hydraulic punching machines, die cutting machines or CNC equipment.
Lamination: PE film, hot melt film, adhesive layers, fabric, foil or other materials can be laminated with IXPE foam.
Embossing: rollers press patterns onto the IXPE surface for texture, appearance or functional requirements.
In addition to supplying IXPE foam sheets and rolls, TOPSUN provides foam converting services for OEM projects, industrial packaging, automotive components and custom foam assemblies.
Cutting: cut the foam size according to customer requirements.
Slicing: slice the foam thickness according to the required tolerance.
Lamination: hot melt film lamination, flame lamination and pressure-sensitive adhesive lamination.
Laser vibrator cutting: cut foam according to drawings without opening molds.
Die cutting: open molds according to your design for faster production of repeated parts.
Compression molding: produce three-dimensional molded foam and foam composite parts with defined geometry and controlled wall thickness.
Engraving: produce tool box inserts, packaging inserts and shaped foam inserts.
Silk-screen printing: print logos, marks and patterns on the foam surface.
Adhesive backing: apply adhesive and release liners for foam tapes, pads and stick-on foam parts.
TOPSUN supplies a wide range of foam materials, including EVA foam, PE foam, XPE foam, IXPE foam, CR foam, EPDM foam, neoprene foam, SBR foam, NBR foam and micro-cell soft PVC foam. These materials can be supplied in sheet and roll form, and can also be converted into custom foam products.

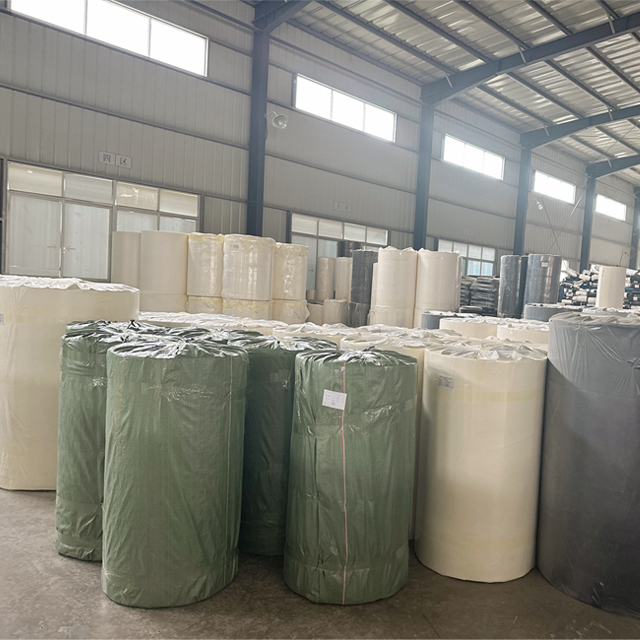

TOPSUN is a professional foam supplier located in Changzhou, Jiangsu Province, about one hour by road from Shanghai Port. This location supports convenient export logistics for overseas buyers, distributors and OEM customers.
For samples, please send your foam material requirements, density, thickness, size, color, processing method and application details to july@topsunfoam.com. TOPSUN will check your request and reply within 24 hours.
IXPE polyethylene foam is irradiation cross-linked polyethylene foam with a closed-cell structure. It is lightweight, resilient, moisture-resistant and suitable for cushioning, insulation, sound absorption, packaging and custom converted foam parts.
IXPE foam is cross-linked by irradiation, which gives the foam better cell uniformity, dimensional stability, tensile strength, tear resistance and heat resistance than many ordinary non-cross-linked PE foams.
TOPSUN can supply IXPE foam with a density range from 25 kg/m³ to 300 kg/m³. Higher-density foam is usually selected for stronger support and durability, while lower-density foam is often used for lightweight cushioning and insulation.
Yes. IXPE foam can be supplied as foam sheets or foam rolls. It can also be slit, cut, laminated, die cut, punched, engraved, molded or processed with adhesive backing according to project requirements.
The standard thickness range is 3 mm to 50 mm. Custom thickness can be discussed based on density, application, order quantity and processing method.
Yes. IXPE foam can be laminated with PE film, adhesive, fabric, aluminum foil and other materials to improve surface function, insulation performance, bonding performance or final product appearance.
IXPE foam is commonly used in automotive interiors, electronics, protective packaging, construction materials, HVAC systems, sports products, toys, medical cushioning and industrial foam components.
To choose the right grade, confirm the required density, thickness, hardness, compression performance, insulation requirement, lamination structure, surface requirement and final use environment. If you are not sure, send TOPSUN your drawing, sample or application description for recommendation.
Send your foam details to july@topsunfoam.com, including material, density, thickness, size, color, processing requirement and application. TOPSUN will review your request and reply within 24 hours.
