Protective packaging is rarely defined by a single requirement. Products often require cushioning, structural integrity, vibration dampening, or static protection during transit—needs that a single foam density cannot fully meet.

Multi-layer foam construction addresses this by combining different foam types or densities into a unified, engineered structure. Through lamination, packaging designers can create solutions that deliver impact absorption, structural strength, and environmental protection within one system.

The result is a packaging solution tailored to the real conditions a product experiences throughout the supply chain.

What Is Multi-Layered Foam?

Multi-layered foam—commonly referred to as laminated foam—is created by bonding two or more foam layers into a single composite material. These layers may consist of the same foam in different densities or a combination of materials chosen for their specific performance properties.

Typical bonding methods include heat lamination, hot-air bonding, and adhesive bonding, depending on the materials used and the required performance outcomes.

A custom foam insert may feature:

●A rigid polyethylene foam base for structural support

●A softer polyurethane foam layer for cushioning

●A specialized layer for static control or environmental protection

Each layer serves a distinct purpose. When engineered together, they form a protective packaging system that performs more effectively than any single-density foam on its own.

Why Single-Density Foam Has Limitations

Foam performance depends on factors such as density, cell structure, and material composition, all of which influence how it compresses, absorbs impact, and supports weight.

High-density foams are well-suited for load-bearing, compression resistance, and structural stability. In contrast, low-density foams offer softer cushioning, improved vibration absorption, and reduced risk of surface damage. Many packaging applications require both sets of properties simultaneously, but a single-density foam can only balance between them. Multi-layered foam eliminates this compromise while maintaining efficient weight and size for packaging.

How Layered Foam Enhances Packaging Performance

Impact Absorption and Shock Protection

Layered foam systems distribute impact forces across multiple materials. A firmer layer provides stability, while softer layers absorb energy during drops or handling, minimizing the transfer of shock to the product.

Structural Support for Heavier Items

Heavier products place increased stress on packaging throughout shipping and storage. High-strength, closed-cell foams offer excellent load-bearing capacity, helping maintain shape and prevent deformation during stacking or long-distance transit—while still protecting more delicate components.

Environmental and Chemical Resistance

In certain shipping conditions, packaging may be exposed to oils, solvents, moisture, or cleaning agents. Incorporating cross-linked polyethylene foam as a dedicated layer enhances chemical resistance while preserving cushioning performance. Closed-cell structures also improve thermal insulation and moisture resistance without adding significant weight.

Noise Reduction and Vibration Control

For sensitive instruments and mechanical equipment, layered foam helps reduce both vibration and noise during transport. Specialized materials can act as acoustic barriers, absorbing mechanical energy before it reaches precision components—an important factor for equipment exposed to prolonged transit conditions.

Electrostatic Protection for Electronics

Electronic devices, circuit boards, and medical equipment are vulnerable to electrostatic discharge (ESD). Integrating anti-static or conductive foam layers into a multi-layer design provides reliable ESD protection while maintaining cushioning and structural integrity.

Surface Protection and Presentation Quality

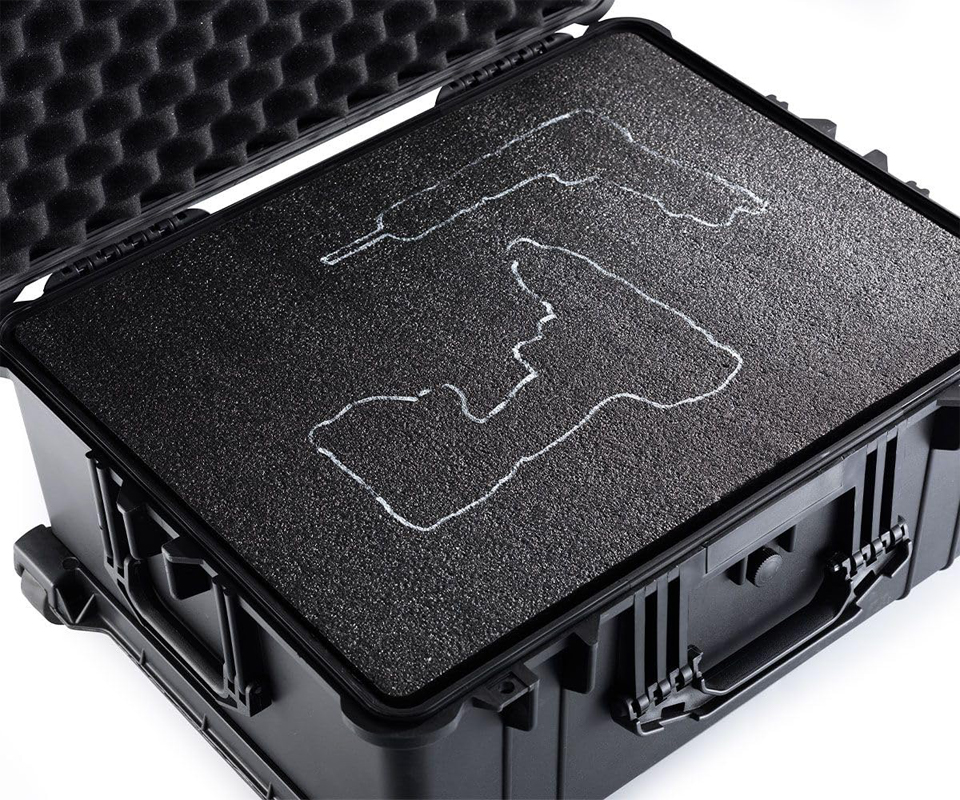

Products with delicate finishes or Class A surfaces require non-abrasive contact. A soft top layer protects surfaces from scratches, while denser layers underneath ensure overall package stability. This approach is widely used in equipment cases, demo kits, and premium presentation packaging for high-value items.

Foam Materials Used in Multi-Layer Packaging

Material selection is driven by the product being shipped and the conditions it may encounter during transit. Amcon utilizes a broad range of foam materials to engineer layered packaging systems, with the most commonly specified options including:

●Expanded Polyethylene (EPE): A lightweight, closed-cell foam known for its strong cushioning performance. EPE is non-crosslinked and fully recyclable, making it a suitable option for applications where sustainability is a priority.

●Expanded Polypropylene (EPP): A resilient beaded foam offering excellent impact resistance and shape recovery. It is ideal for reusable packaging and dunnage systems that require repeated use.

●Polyethylene Foam (PE): A versatile closed-cell material available in a wide range of densities, providing good moisture resistance and compatibility with various fabrication methods.

●Polyurethane Foam (PU): A flexible, open-cell foam that delivers effective vibration dampening and cushioning. Commonly used for medical devices, precision instruments, and applications requiring conformity to complex shapes.

●Cross-Linked Polyethylene (XLPE): A fine-cell, uniform foam with excellent dimensional stability, chemical resistance, and durability. Frequently used in gaskets, precision inserts, and medical packaging.

●Expanded Polystyrene (EPS): A rigid foam suited for structural packaging and thermal insulation, particularly in temperature-controlled shipping environments.

●ESD and Anti-Static Foams: Available in both static-dissipative and conductive forms to protect electronics and sensitive components from electrostatic discharge.

●Fire-Resistant and Military-Grade Foams: Designed for regulated and defense applications where materials must meet strict compliance and performance standards.

Applications of Multi-Layered Foam Packaging

Protective Packaging and Engineered Foam Dunnage

Custom foam inserts tailored to product geometry minimize movement during transit while absorbing shock and vibration. Engineered foam dunnage secures components throughout shipping without the need for loose-fill materials.

Medical Devices and Precision Equipment

Medical and laboratory equipment often require packaging that combines cushioning, dimensional stability, and chemical resistance. Multi-layer foam systems integrate these properties into a single, effective solution.

Presentation Packaging and Equipment Cases

Layered foam inserts deliver both protection and visual appeal. They are widely used in demo kits, equipment cases, and premium product packaging where presentation is just as important as protection.

Military and Government Packaging

Military applications often demand specialized materials such as FRAS polyethylene or military-grade urethane foams. Multi-layer constructions help meet strict performance standards while protecting sensitive and complex equipment during transport.

Multi-Component Product Kits

For kits with multiple parts, tiered foam designs provide dedicated cavities for each component. This keeps items organized, secure, and easy to access during assembly or use.

Fabrication Methods for Multi-Layer Foam Systems

Material selection and design are only part of the process. The fabrication method determines how precisely the final insert fits the product. Key methods include:

●Die Cutting: Efficient for high-volume production with consistent accuracy

●CNC Routing and Pattern Cutting: Ideal for intricate designs and multi-depth cavities

●Waterjet Cutting: Enables complex shapes without heat distortion

●Contour Cutting: Produces three-dimensional foam forms in both horizontal and vertical orientations

●Foam Lamination: Bonds multiple layers into a single engineered structure using heat, hot-air, or adhesive techniques

Engineering the Right Protective Packaging System

Designing effective multi-layer foam packaging requires a comprehensive approach. Key factors include product weight and fragility, handling and shipping conditions, environmental exposure, packaging geometry, and specific performance needs such as shock absorption or static control. Well-engineered packaging also contributes to sustainability by reducing product damage, minimizing material waste, and improving overall supply chain efficiency.

At TOPSUN, every project starts with a thorough evaluation of both the product and its distribution environment. With over 40 years of foam fabrication expertise and manufacturing facilities in Jiangsu ,China, the team delivers solutions tailored to each application—from single custom inserts to large-scale engineered dunnage programs.
