CR foam
Topsun
316%
110-150kg/M3
1-50mm
Availability: | |
---|---|
Product Description
CR SPECIFICATION | ||||||
Nos | The inspection items name and units | Units | Technical requirments | Inspection Result | Inspection Method | Single judge |
1 | Tensile strength | Mpa | / | 1.03 | ASTM D412-06a | / |
2 | Tensile elongation | % | / | 216 | ASTM D412-06a | / |
3 | Compression permanent deformation | % | / | 30 | ASTM D395-03(2008) | / |
4 | water aborbing | % | 3 | / | ||
5 | Flame retardant (Yang index) | % | 26 (with UL-94V0) | / | ||
6 | Till hot air ageing (105ºCx8h) after | / | / | No crack | ASTM D1056-2007 | / |
7 | Low temperature bending(-40ºCX24H, 180-degree bend sight) | / | / | No crack | ASTM D1056-2007 | / |
8 | Shore A hardness | / | / | 22 | ASTM D2240-05(2010) | / |
9 | Density | G/CM3 | / | 0.173 | ASTM D1622-08 | / |
Now we can speak about properties & benefits. This product has a wide range of applications. We can see the CR&EPDM applications on below:
Oil industry & energy
Automotive industry
Gaskets & Seals
Construction
Engineering Equipment
Home & electrical appliances
Stripes & tapes
HVAC (Heating, Ventilation & Air Conditioning)

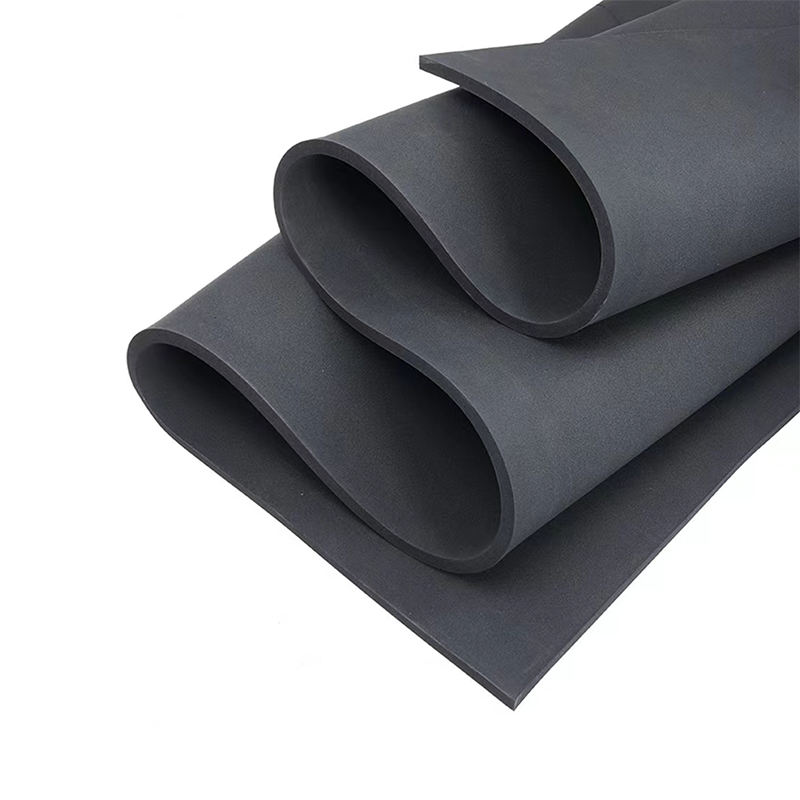

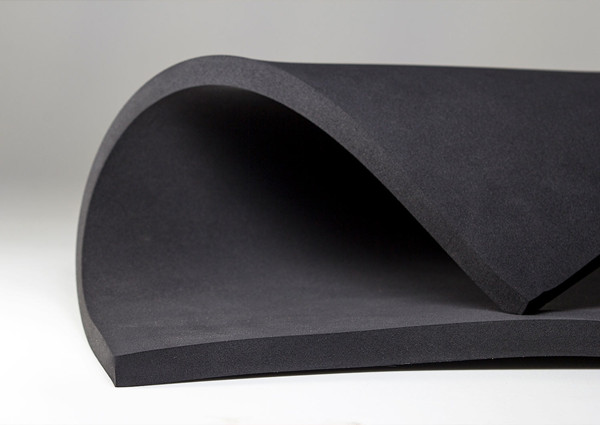

A brief description about CR FOAM:
CR foam is the most flameproof foam between all kinds. Can be simply be implemented in aquatic structures although their most efficient usage is in sports equipment and medical braces and pads. Despite being a very demanding product, the price is reasonable
Topsun, the Professional supplier for the Foams, we can provide a variety of foam products, such as EVA foam, PE foam, neoprene foam, EPDM foam and NBR foam.At the same time, we have advanced processing capabilities to convert foam into the products you need.

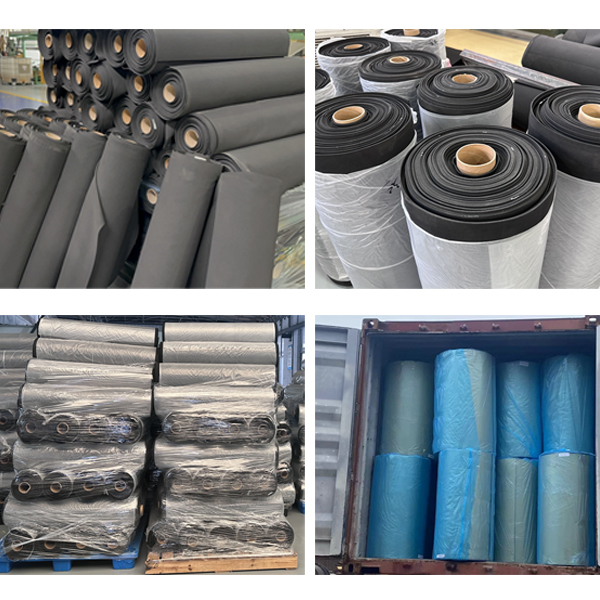

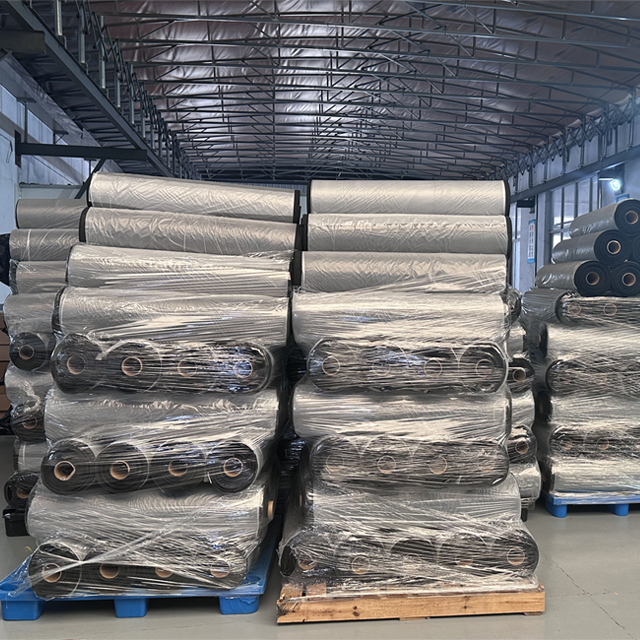

We can supply :EVA foam, PE foam, XPE foam, IXPE foam, CR foam, EPDM foam, Neoprene foam, SBR foam, NBR foam, Micro-cell soft PVC foam. All of them we can supply in sheet and roll.
1. Cutting - cutting the size as per client’s request
2. Slicing - Slicing the thickness as per client’s request
3. Lamination - hot melt film lamination, flame lamination, and pressure-sensitive adhesive lamination
4. Laser Vibrator - New type cutting machine, can cut the foam drawing without open molds
5. Die cutting - Open molds as per your design then at first, use die cutting machine to produce, it’s quicker than laser vibrator.
6. Compression Molding - Compression molding is a process we utilizes for the manufacturing of three-dimensional molded foam and foam composite parts. It is an ideal process for making parts that have intricate features, require very defined part geometry, have varying wall thicknesses or need to be held to critical dimensional tolerances.
7. Engraving machine - Usually to make tool box insert and packing insert as per client’s requests.
8. Silk-screen printing - Print logos and patterns on the surface of foam products
9. Adhesive backing - Gluing on the surface of the foam with liners. Usually produce foam tapes and other products need to stick on.

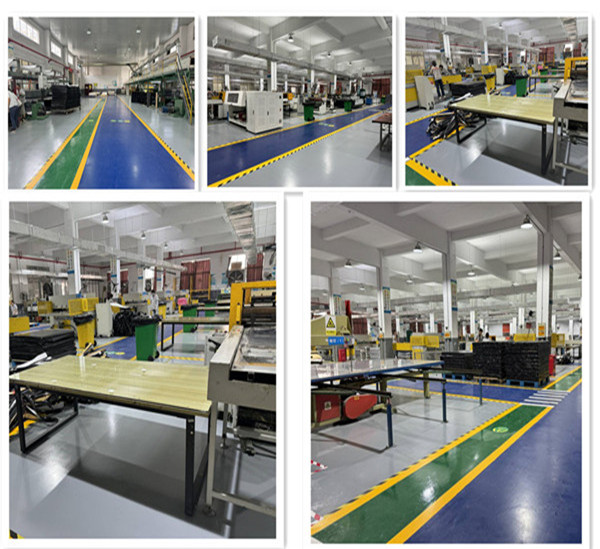

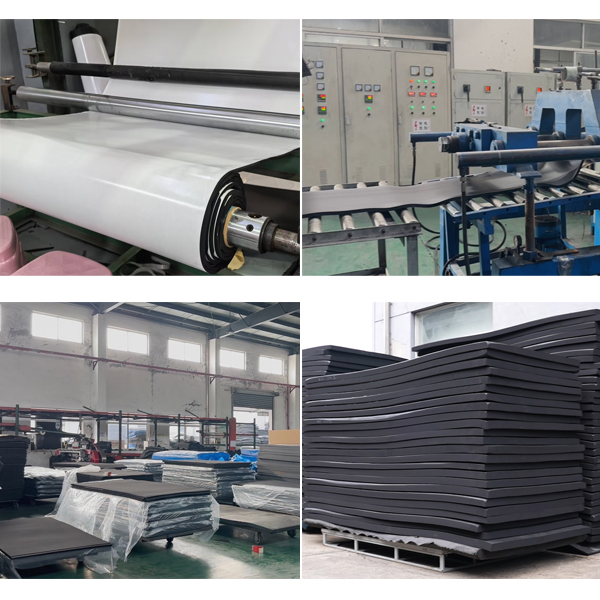

Our factory is located in Changzhou city, Jiangsu Province. One hour driving to Shanghai Port.
Send enquiry to july@topsunfoam.com, with your details of the foams need, we will check reply in 24 hours.We are committed to continuously providing excellent products and services to customers worldwide
