Product Description

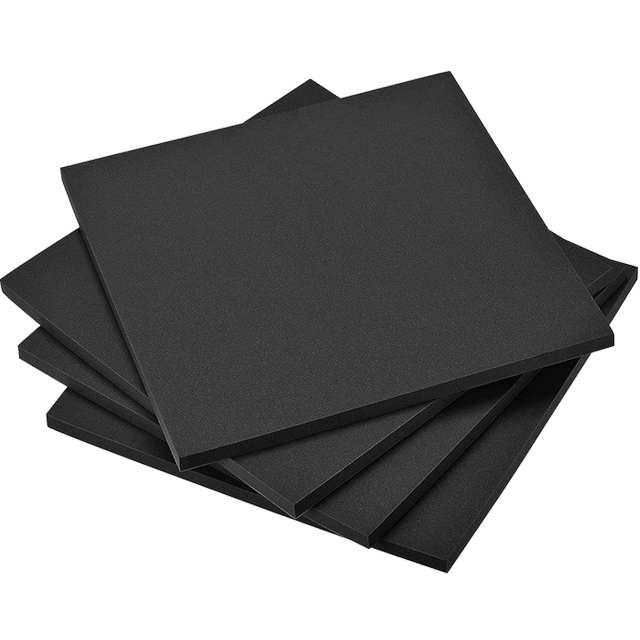

Topsun closed cell EVA foam is a resilient cushioning material for gym flooring, exercise areas, artificial grass underlay, sports surfaces, protective pads and custom flooring components.
The closed-cell structure helps limit water absorption while providing cushioning, compression recovery and impact absorption. EVA foam can be supplied as sheets or converted into pads, strips, laminated structures and other custom components according to flooring and installation requirements.
The referenced EVA grade on this page has a density specification of 110–130 kg/m³ with a measured result of 123.5 kg/m³. Its tested compression, tensile and tear properties provide useful engineering data when evaluating the material for cushioning and underlay applications.
Final foam thickness, density, hardness, sheet dimensions, compression behavior, drainage design, surface structure and installation method should be selected according to the complete gym or artificial turf system.
Request EVA Flooring Foam Quote
| Property | Product Information |
| Material | EVA Foam |
| Cell Structure | Closed Cell |
| Referenced Density Grade | 110–130 kg/m³ |
| Measured Density | 123.5 kg/m³ for Current Tested Sample |
| Tensile Strength | Specification ≥120 kPa; Tested Result 241.0 kPa |
| Elongation | Specification ≥120%; Tested Result 196% |
| Compression Deflection | Specification ≤5.0 kPa; Tested Result 2.9 kPa |
| Compression Deformation | Specification ≤30%; Tested Result 6.0% |
| Tear Strength | Specification ≥2.5 N/cm; Tested Result 6.5 N/cm |
| Primary Applications | Gym Flooring / Exercise Areas / Artificial Grass Underlay / Sports Cushioning / Protective Pads |
| Supply Forms | Sheet / Block / Roll / Strip / Pad / Laminated Foam / Custom Part |
| Custom Processing | Cutting / Slicing / Lamination / Laser Cutting / Die Cutting / Engraving / Compression Molding / Printing / Adhesive Backing |
Closed cell EVA foam can provide a resilient layer between the finished surface and the supporting base. The foam can absorb part of the mechanical load while helping create a softer and more comfortable surface.
| Flooring Requirement | EVA Foam Function |
| Cushioning | Provides a resilient layer beneath the finished flooring surface. |
| Impact Absorption | Helps absorb mechanical impact when the correct density and thickness are selected. |
| Moisture Exposure | Closed-cell structure helps limit water absorption. |
| Compression Recovery | Provides useful resilience under repeated loading. |
| Custom Dimensions | Foam can be cut and converted according to the finished flooring design. |
| Installation | Adhesive-backed or custom-cut constructions can be evaluated where required. |
Closed cell EVA foam can be evaluated as a cushioning component in gym flooring, exercise mats, training areas and other sports flooring systems.
Density, hardness and thickness determine the balance between softness, support and compression behavior. Higher-support applications may require different material parameters than lightweight exercise mats or comfort layers.
Buyers should define the expected load, required cushioning, surface construction, installation method and any finished-floor impact, slip or fire-performance requirements before selecting the foam.
EVA foam can be evaluated as a cushioning underlay beneath artificial grass for leisure, landscaping and suitable sports applications.
An underlay layer can help improve underfoot comfort and provide additional impact cushioning beneath the artificial turf.
Drainage is an important part of artificial grass system design. Where drainage holes, slots, channels or other water-management features are required, these should be defined as part of the finished underlay construction and installation system.
Final impact attenuation, vertical deformation, drainage and sports performance should be tested on the complete artificial turf system where those requirements apply.
EVA foam can also be converted into exercise mats, protective pads and cushioning components where resilience and impact absorption are required.
Surface texture, density, hardness, thickness and finished dimensions can be evaluated according to the type of sports or exercise product.
Discuss Your Flooring Application
The following data applies to the referenced EVA foam grade. Other density, hardness, thickness and formulation options should be confirmed separately for each flooring or underlay project.
| EVA Foam Specification | |||||
| Item | Test Standard | Specification | Test Result | Unit | |
| Density | GB/T 6343-1995 | 110–130 | 123.5 | kg/m³ | |
| Tensile Strength | GB/T 6344-2008 | ≥120 | 241.0 | kPa | |
| Tensile Rate | GB/T 6344-2008 | ≥120 | 196 | % | |
| Compression Deflection | ASTM D 1056 | ≤5.0 | 2.9 | kPa | |
| Compression Deformation | GB/T 6669-2008 | ≤30 | 6.0 | % | |
| Tear Strength | GB/T 10808-2006 | ≥2.5 | 6.5 | N/cm | |
| Thermal Endurance | Low Temperature Test -40°C±1°C, 5 h | ASTM D 1056 | Soft, No Cracking | Pass | — |
| High Temperature Test 90°C±3°C, 7 Days | GB/T 17794-1999 | ≤10.0 | 7.14 | % | |
EVA Foam Tool Box Insert
EVA Foam Tape
EVA Foam Roll
Topsun can convert EVA foam into sheets, pads, strips, laminated components and custom foam parts according to project requirements.
Custom options can include density, hardness, thickness, dimensions, color, surface texture, lamination, adhesive backing and finished cutting shape.
For gym flooring and artificial grass projects, provide the intended use, expected load, required cushioning, sheet or roll dimensions, installation method and any system-level testing requirements.
| Selection Factor | Information to Confirm |
| Flooring Type | Gym flooring, exercise area, mat or other sports surface. |
| Expected Load | Provide expected user, equipment or floor loading conditions. |
| Density | Choose according to required support and cushioning. |
| Hardness | Specify required firmness or provide a reference sample. |
| Thickness | Confirm required finished cushioning thickness. |
| Compression | Define allowable deformation and required recovery. |
| Installation | Confirm loose-laid, laminated, bonded or other installation method. |
| Finished System Tests | Provide any required impact, slip, fire or flooring-system test requirements. |
| Selection Factor | Information to Confirm |
| Turf Application | Landscaping, playground, leisure, sports field or other artificial turf system. |
| Density | Select according to required cushioning and load support. |
| Thickness | Define the required underlay thickness for the turf construction. |
| Impact Requirement | Provide required system-level impact or safety performance where applicable. |
| Drainage | Confirm whether drainage holes, slots, grooves or another drainage construction is required. |
| Outdoor Exposure | Provide expected outdoor and environmental conditions. |
| Roll or Sheet Size | Provide field layout and preferred dimensions. |
| Installation Method | Confirm base construction, turf system and installation method. |
Send Your Flooring Requirements
EVA foam sheets, blocks, rolls, strips and pads can be cut according to customer dimensions.

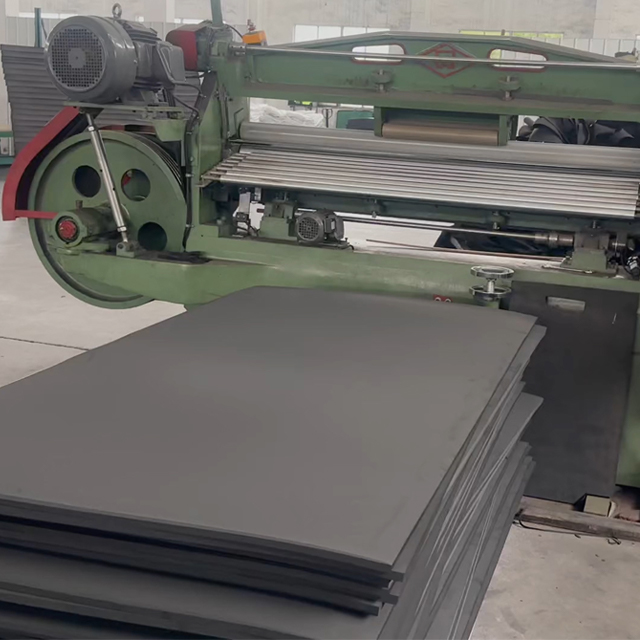

EVA foam can be sliced to the required thickness before further processing.
Hot-melt film, flame lamination and pressure-sensitive adhesive lamination can be evaluated for compatible foam structures.
Suitable custom shapes can be cut from digital drawings without dedicated cutting dies.
Dedicated tooling can be used for repeat production of pads and suitable flooring components.
Suitable EVA foam can be compression molded into three-dimensional foam and composite parts.
Engraving can be used for selected surface or component designs.
Logos, identification and suitable patterns can be printed on compatible EVA foam surfaces.
Pressure-sensitive adhesive and release liner can be applied to suitable EVA foam where bonded installation is required.
Topsun supplies EVA, PE, XPE, IXPE, IXPP, EPDM, CR, neoprene, SBR, NBR and microcellular soft PVC foam for sports, flooring, packaging, automotive, construction and industrial applications.
Foam materials can be supplied as blocks, sheets, rolls, strips and pads or converted into laminated structures, adhesive-backed materials and custom components.

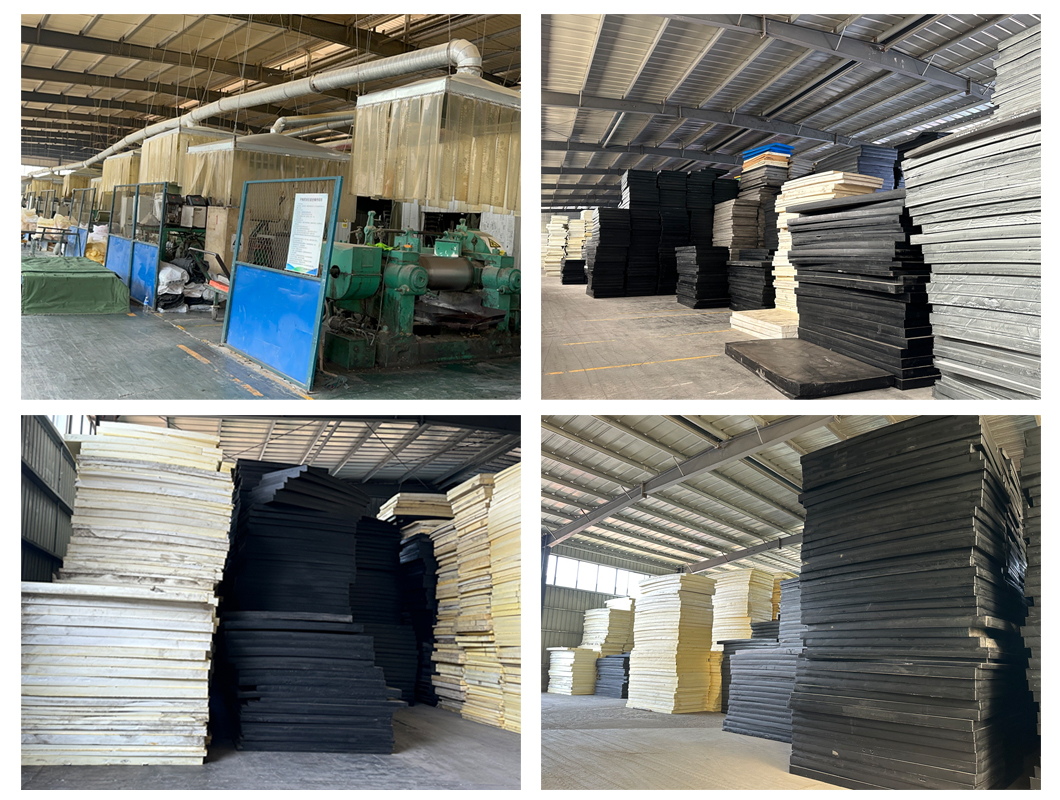

Our facility is located in Changzhou City, Jiangsu Province, China, with convenient access to Shanghai Port for international shipments.
Closed cell EVA foam is a resilient ethylene vinyl acetate material with individual cells that are largely separated from each other, providing cushioning and low water absorption.
Suitable EVA grades can be evaluated as cushioning layers in gym flooring, exercise areas and mats. Density, hardness, thickness and expected load should be defined for the project.
EVA foam can be evaluated as an underlay beneath suitable artificial grass systems where additional cushioning and impact absorption are required.
Outdoor artificial grass systems normally need an appropriate drainage design. Required holes, slots, grooves or drainage construction should be specified according to the complete turf system.
The referenced grade has a density specification of 110–130 kg/m³ with a measured result of 123.5 kg/m³.
The referenced grade has a listed specification of ≤5.0 kPa and a tested result of 2.9 kPa under the stated test method.
Closed-cell EVA has low water absorption and useful moisture resistance. Final waterproof or drainage performance depends on the complete flooring or turf system.
Thickness can be discussed according to the required cushioning, loading and finished product construction. Final availability should be confirmed for the selected foam grade.
Different hardness requirements can be evaluated according to the desired support and cushioning performance. Provide the required hardness or a reference sample where available.
Topsun can supply EVA foam in different forms including blocks, sheets and rolls depending on the selected grade and processing requirement.
Where an artificial turf project requires a specific drainage construction, provide the hole, slot or groove design for production feasibility review.
Yes. Pressure-sensitive adhesive and release liner can be applied to suitable EVA foam where bonded installation is required.
Flame-retardant options can be evaluated where required. Provide the exact flame test or flooring requirement before material selection.
Material suitability should be evaluated as part of the complete sports-surface system. Required impact, deformation, drainage or sports-standard performance should be tested on the complete system.
The referenced grade passed the listed -40°C±1°C, 5-hour test with a requirement of remaining soft without cracking. Other grades should be confirmed separately.
Provide the application, required density, hardness, thickness, dimensions, expected load, installation method and any impact, slip or fire-performance requirements.
Provide the turf application, required density and thickness, field dimensions, impact requirement, drainage design, outdoor conditions, installation method and expected quantity.
