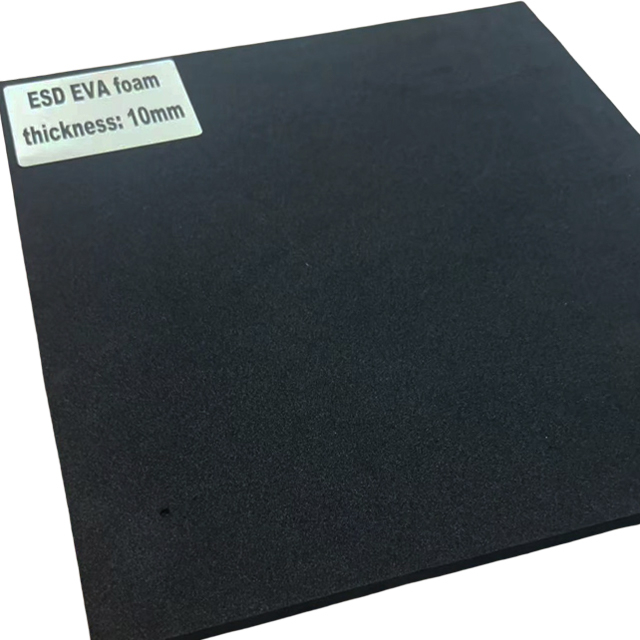

ESD EVA Antistatic Foam Sheet

ESD EVA Antistatic Foam Sheet for Electronics Packaging and Case Inserts

Topsun ESD EVA antistatic foam sheet is designed for electronic product protection, case inserts, tool box inserts, component packaging, anti-static cushioning and custom die-cut foam parts. The material combines EVA foam cushioning performance with antistatic properties, helping protect sensitive electronic components from static-related risks during storage, handling and transportation.

ESD EVA foam can be supplied as sheets, rolls, inserts, strips, pads, trays, adhesive-backed foam and custom die-cut parts. Topsun can customize density, thickness, size, color, surface resistance range, adhesive backing, lamination, cutting shape and packaging method according to customer drawings, samples or application requirements.

High Quality Open Cell EVA Foam for Case Inserts Features

• Lightweight foam structure with good elasticity for cushioning and case insert applications.

• Weatherproof and waterproof performance for protective packaging and storage use.

• Flame-retardant options can be evaluated according to application and test requirements.

• Sound absorption and cushioning performance for electronics, instruments and equipment protection.

• Heat insulation performance for packaging, industrial protection and custom foam components.

• Elastic and flexible structure, easy to process into custom foam inserts and die-cut parts.

• Conductive and antistatic performance for ESD packaging and electronic component protection.

• ROHS certificate support, non-toxic material options and custom adhesive backing on one side or both sides.

ESD EVA Foam Specification

ESD EVA Antistatic Foam Sheet Video

What Is ESD EVA Antistatic Foam?

ESD EVA antistatic foam is a protective foam material used for electronic components, instruments, circuit boards, precision parts and packaging systems that need static-control protection. It provides cushioning while helping reduce static buildup and static discharge risk during product handling and shipping.

Open cell foam materials are usually lightweight, soft and compressible. They are suitable for cushioning, sound absorption and shock absorption applications. For ESD protection, the antistatic value, density, thickness, product contact surface and packaging environment should be confirmed before selecting the final material grade.

Topsun can process ESD EVA foam into case inserts, tool box inserts, trays, pads, strips, die-cut shapes and adhesive-backed components according to customer drawings, samples or packaging requirements.

Features and Advantages of ESD EVA Foam

• Antistatic value range of 10^6-10^11 Ω for ESD protection applications.

• Lightweight and flexible structure for case inserts and component cushioning.

• Suitable for reducing product movement, impact and vibration during storage and transportation.

• Can be cut, laminated, punched, die cut, engraved and supplied with adhesive backing.

• Helps protect circuit boards, electronic parts, sensors, instruments and precision components.

• ROHS certificate and non-toxic material options can be provided according to customer project requirements.

• Single-side or double-side adhesive backing is available for assembly and mounting applications.

Applications of ESD EVA Antistatic Foam Sheet

ESD EVA foam is suitable for electronic component packaging, PCB protection, precision instrument packaging, case inserts, tool box inserts, equipment foam trays, antistatic cushioning pads, shipping protection, assembly pads, foam tapes and custom die-cut foam components.

EVA foam is also a versatile material for marine flooring, orthopedic EVA blocks, protective packaging, cushioning pads, sound absorption and general foam converting applications. It can be used as a substitute for felt, neoprene, natural rubber, polyurethane foam, PVC foam, wood composites, mineral wool and glass fiber in many cushioning and protection projects.

EVA Foam Tool Box Insert

EVA Foam Tape

EVA Foam Rolls

Custom ESD EVA Foam Sheet, Case Insert and Die-Cut Part Options

Topsun can convert ESD EVA antistatic foam into foam sheets, rolls, strips, pads, trays, case inserts, tool box inserts, packaging inserts, adhesive tapes and custom die-cut components. Custom options include thickness, density, antistatic value, color, size, adhesive backing, release liner, lamination, cavity cutting and packaging method.

For electronic packaging projects, customers should confirm product size, product weight, ESD requirement, antistatic value range, required foam thickness, density, color, packaging method, adhesive requirement and estimated order quantity. These details help determine the right foam grade and converting process.

Topsun Foam Processing Capability

Topsun is a professional supplier of foam materials and custom foam products. We can provide EVA foam, PE foam, XPE foam, IXPE foam, CR foam, EPDM foam, neoprene foam, SBR foam, NBR foam and micro-cell soft PVC foam. At the same time, we have advanced processing capabilities to convert foam materials into the products you need.

1. Cutting: cut foam sheets, rolls, strips or parts according to customer size requirements.

2. Slicing: slice foam thickness according to the required specification.

3. Lamination: provide hot melt film lamination, flame lamination and pressure-sensitive adhesive lamination.

4. Laser cutting: cut foam drawings without opening molds for some customized foam shapes.

5. Die cutting: open molds according to customer design and produce foam pads, seals and inserts efficiently.

6. Compression molding: manufacture three-dimensional molded foam and foam composite parts with defined geometry and dimensional requirements.

7. Engraving: produce tool box inserts and packaging inserts according to customer requirements.

8. Silk-screen printing: print logos and patterns on the surface of foam products.

9. Adhesive backing: apply adhesive and release liner to produce foam tapes and self-adhesive foam parts.

About Topsun Foam

Topsun is a professional foam supplier with custom converting capabilities for ESD packaging, electronics protection, cushioning, sealing, insulation and protective foam applications. Our foam materials can be supplied as sheets, rolls, strips, tapes, molded parts and die-cut products.

Our factory is located in Changzhou City, Jiangsu Province, about one hour by road to Shanghai Port. Topsun provides foam material selection, custom processing, sample support and OEM foam converting services for customers worldwide.

ESD EVA Antistatic Foam Sheet FAQ

What is ESD EVA antistatic foam sheet?

ESD EVA antistatic foam sheet is EVA foam with antistatic performance for electronic product packaging and protection. It is used to cushion sensitive components while helping reduce static buildup during storage, handling and transportation.

What is the antistatic value of this ESD EVA foam?

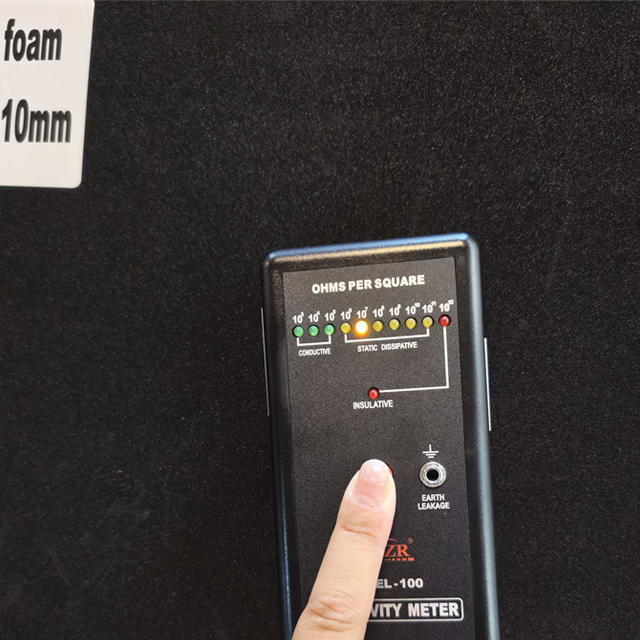

The listed antistatic value is 10^6-10^11 Ω under a testing environment of 23ºC±2ºC and 50%±5% humidity. Customers should confirm the required ESD range according to their electronic packaging standard.

What is ESD EVA foam used for?

ESD EVA foam is used for PCB packaging, electronic component protection, precision instrument packaging, case inserts, tool box inserts, antistatic trays, cushioning pads, shipping protection, foam tapes and custom die-cut parts.

Can Topsun customize ESD EVA foam thickness and density?

Yes. Topsun can customize ESD EVA foam thickness, density, sheet size, roll size, color, antistatic value range, adhesive backing, lamination and die-cut shape according to customer requirements.

Can ESD EVA foam be made into case inserts?

Yes. Topsun can process ESD EVA foam into case inserts, tool box inserts, packaging inserts, foam trays, cavity inserts and protective pads according to product dimensions, drawings or samples.

Can ESD EVA foam be supplied with adhesive backing?

Yes. Topsun can supply ESD EVA foam with adhesive backing on one side or both sides. Adhesive type and release liner can be selected according to the bonding surface and use environment.

How do I choose the right ESD EVA antistatic foam?

To choose the right ESD EVA foam, confirm antistatic value range, thickness, density, part size, product weight, packaging method, compression requirement, adhesive requirement, ESD standard and whether custom cutting or die cutting is needed.

How can I get samples of ESD EVA foam sheet?

Send your inquiry to july@topsunfoam.com with your required thickness, density, antistatic value, size, color, adhesive backing requirement, application and estimated quantity. Topsun will check your requirements and reply within 24 hours.
